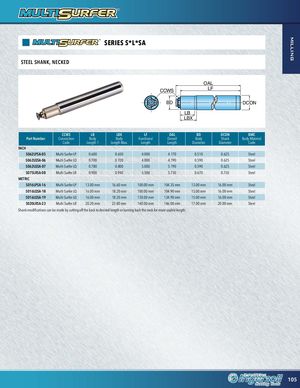

milling SERIES S*L*SA STEEL SHANK, NECKED OAL CCWS LF BD DCON LB LBX CCWS LB LBX LF OAL BD DCON BMC Part Number Connection Body Body Functional Overall Body Shank Body Material Code Length 1 Length Max. Length Length Diameter Diameter Code INCH S062LPSA-05 Multi-Surfer LP 0.600 0.650 4.000 4.170 0.510 0.625 Steel S062LQSA-06 Multi-Surfer LQ 0.700 0.720 4.000 4.190 0.590 0.625 Steel S062LQSA-07 Multi-Surfer LQ 0.780 0.800 5.000 5.190 0.590 0.625 Steel S075LRSA-08 Multi-Surfer LR 0.900 0.940 5.500 5.730 0.670 0.750 Steel METRIC S016LPSA-16 Multi-Surfer LP 13.00 mm 16.60 mm 100.00 mm 104.35 mm 13.00 mm 16.00 mm Steel S016LQSA-18 Multi-Surfer LQ 16.00 mm 18.20 mm 100.00 mm 104.90 mm 15.00 mm 16.00 mm Steel S016LQSA-19 Multi-Surfer LQ 16.00 mm 18.20 mm 130.00 mm 134.90 mm 15.00 mm 16.00 mm Steel S020LRSA-23 Multi-Surfer LR 20.20 mm 23.80 mm 140.00 mm 146.00 mm 17.00 mm 20.00 mm Steel Shank modifications can be made by cutting off the back to desired length or turning back the neck for more usable length. 105
