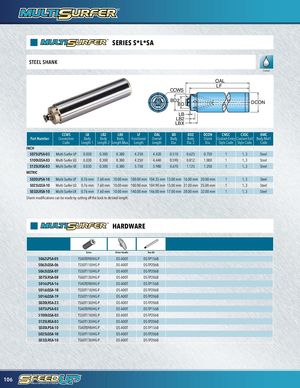

Каталог Ingersoll новинки 2021 - страница 106

SERIES S*L*SA STEEL SHANK Coolant OAL LF CCWS BD2 BD DCON LB LB2 LBX CCWS LB LB2 LBX LF OAL BD BD2 DCON CNSC CXSC BMC Part Number Connection Body Body Body Functional Overall Body Body Shank Coolant Entry Coolant Exit Body Mat’l Code Length 1 Length 2 Length Max. Length Length Dia. Dia. 2 Dia. Style Code Style Code Code INCH S075LPSA-03 Multi-Surfer LP 0.030 0.300 0.380 4.250 4.420 0.510 0.625 0.750 1 1, 3 Steel S100LQSA-03 Multi-Surfer LQ 0.030 0.300 0.380 4.250 4.440 0.590 0.812 1.000 1 1, 3 Steel S125LRSA-03 Multi-Surfer LR 0.030 0.300 0.380 5.750 5.980 0.670 1.125 1.250 1 1, 3 Steel METRIC S020LPSA-10 Multi-Surfer LP 0.76 mm 7.60 mm 10.00 mm 100.00 mm 104.35 mm 13.00 mm 16.00 mm 20.00 mm 1 1, 3 Steel S025LQSA-10 Multi-Surfer LQ 0.76 mm 7.60 mm 10.00 mm 100.00 mm 104.90 mm 15.00 mm 21.00 mm 25.00 mm 1 1, 3 Steel S032LRSA-10 Multi-Surfer LR 0.76 mm 7.60 mm 10.00 mm 140.00 mm 146.00 mm 17.00 mm 28.00 mm 32.00 mm 1 1, 3 Steel Shank modifications can be made by cutting off the back to desired length. HARDWARE Screw Driver Handle Torx Bit S062LPSA-05 TS40T098/HG-P DS-A00T DS-TP156B S062LQSA-06 TS50T110/HG-P DS-A00T DS-TP206B S062LQSA-07 TS50T110/HG-P DS-A00T DS-TP206B S075LRSA-08 TS60T130/HG-P DS-A00T DS-TP206B S016LPSA-16 TS40T098/HG-P DS-A00T DS-TP156B S016LQSA-18 TS50T110/HG-P DS-A00T DS-TP206B S016LQSA-19 TS50T110/HG-P DS-A00T DS-TP206B S020LRSA-23 TS60T130/HG-P DS-A00T DS-TP206B S075LPSA-03 TS40T098/HG-P DS-A00T DS-TP156B S100LQSA-03 TS50T110/HG-P DS-A00T DS-TP206B S125LRSA-03 TS60T130/HG-P DS-A00T DS-TP206B S020LPSA-10 TS40T098/HG-P DS-A00T DS-TP156B S025LQSA-10 TS50T110/HG-P DS-A00T DS-TP206B S032LRSA-10 TS60T130/HG-P DS-A00T DS-TP206B 106
