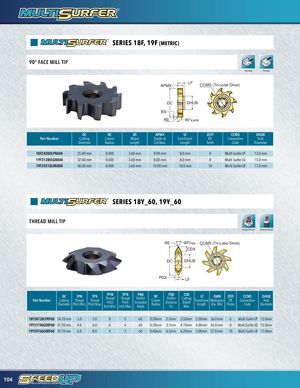

SERIES 18F, 19F (METRIC) 90° FACE MILL TIP Shoulder Facaing APMX LF CCMS (Tri-Lobe Drive) DC DHUB BS RE 90°KAPR DC RE BS APMX LF ZEFF CCMS DHUB Part Number Cutting Corner Wiper Depth of Functional Eff. Connection Hub Diameter Radius Length Cut Max. Length Teeth Code Diameter 18F24280LPRA04 25.00 mm 0.400 3.60 mm 8.00 mm 8.0 mm 8 Multi-Surfer LP 13.0 mm 19F31280LQRA04 32.00 mm 0.400 3.60 mm 8.00 mm 8.0 mm 8 Multi-Surfer LQ 15.0 mm 19F39210LRRA04 40.00 mm 0.400 3.60 mm 10.00 mm 10.0 mm 10 Multi-Surfer LR 17.0 mm SERIES 18Y_60, 19Y_60 THREAD MILL TIP Internal Thread External Thread RE 60ºPNA CCMS (Tri-Lobe Drive) CDX DC DHUB PDX LF Part Number DCCuttingDiameterTPNThreadPitch Min.TPXThreadPitch Max.TPINThreadPitchInch Min.TPIXThreadPitchInch Max.PNAProfileIncludedAngleRECornerRadiusPDXProfileDistanceEx.CDXCuttingDepthMax.LFDWNZEFFFunctional WorkpieceEff.Length.Dia. Min.FlutesCCMSConnectionCodeDHUBHubDiameter 18Y24730LPRP60 24.70 mm 3.0 5.0 8 5 60 0.20mm 2.2mm 3.50mm 5.50mm 36.0 mm 6 Multi-Surfer LP 13.0mm 19Y31740LQRP60 31.70 mm 4.0 6.0 6 4 60 0.30mm 3.7mm 4.70mm 4.00mm 46.0 mm 8 Multi-Surfer LQ 15.0mm 19Y39760LRRP60 39.70 mm 6.0 8.0 4 3 60 0.40mm 4.5mm 6.20mm 5.00mm 57.0 mm 10 Multi-Surfer LR 17.0mm 104
