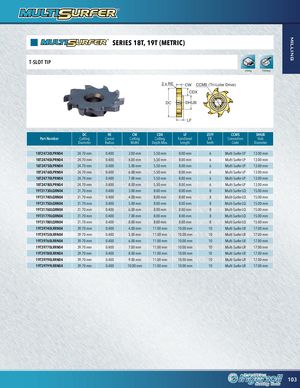

Каталог Ingersoll новинки 2021 - страница 103

milling SERIES 18T, 19T (METRIC) T-SLOT TIP Slotting T-Slotting 2 x RE CW CCMS (Tri-Lobe Drive) CDX DC DHUB LF DC RE CW CDX LF ZEFF CCMS DHUB Part Number Cutting Corner Cutting Cutting Functional Eff. Connection Hub Diameter Radius Width Depth Max. Length Teeth Code Diameter 18T24730LPRN04 24.70 mm 0.400 3.00 mm 5.50 mm 8.00 mm 6 Multi-Surfer LP 13.00 mm 18T24740LPRN04 24.70 mm 0.400 4.00 mm 5.50 mm 8.00 mm 6 Multi-Surfer LP 13.00 mm 18T24750LPRN04 24.70 mm 0.400 5.00 mm 5.50 mm 8.00 mm 6 Multi-Surfer LP 13.00 mm 18T24760LPRN04 24.70 mm 0.400 6.00 mm 5.50 mm 8.00 mm 6 Multi-Surfer LP 13.00 mm 18T24770LPRN04 24.70 mm 0.400 7.00 mm 5.50 mm 8.00 mm 6 Multi-Surfer LP 13.00 mm 18T24780LPRN04 24.70 mm 0.400 8.00 mm 5.50 mm 8.00 mm 6 Multi-Surfer LP 13.00 mm 19T31730LQRN04 31.70 mm 0.400 3.00 mm 8.00 mm 8.00 mm 8 Multi-Surfer LQ 15.00 mm 19T31740LQRN04 31.70 mm 0.400 4.00 mm 8.00 mm 8.00 mm 8 Multi-Surfer LQ 15.00 mm 19T31750LQRN04 31.70 mm 0.400 5.00 mm 8.00 mm 8.00 mm 8 Multi-Surfer LQ 15.00 mm 19T31760LQRN04 31.70 mm 0.400 6.00 mm 8.00 mm 8.00 mm 8 Multi-Surfer LQ 15.00 mm 19T31770LQRN04 31.70 mm 0.400 7.00 mm 8.00 mm 8.00 mm 8 Multi-Surfer LQ 15.00 mm 19T31780LQRN04 31.70 mm 0.400 8.00 mm 8.00 mm 8.00 mm 8 Multi-Surfer LQ 15.00 mm 19T39740LRRN04 39.70 mm 0.400 4.00 mm 11.00 mm 10.00 mm 10 Multi-Surfer LR 17.00 mm 19T39750LRRN04 39.70 mm 0.400 5.00 mm 11.00 mm 10.00 mm 10 Multi-Surfer LR 17.00 mm 19T39760LRRN04 39.70 mm 0.400 6.00 mm 11.00 mm 10.00 mm 10 Multi-Surfer LR 17.00 mm 19T39770LRRN04 39.70 mm 0.400 7.00 mm 11.00 mm 10.00 mm 10 Multi-Surfer LR 17.00 mm 19T39780LRRN04 39.70 mm 0.400 8.00 mm 11.00 mm 10.00 mm 10 Multi-Surfer LR 17.00 mm 19T39790LRRN04 39.70 mm 0.400 9.00 mm 11.00 mm 10.00 mm 10 Multi-Surfer LR 17.00 mm 19T39799LRRN04 39.70 mm 0.400 10.00 mm 11.00 mm 10.00 mm 10 Multi-Surfer LR 17.00 mm 103
