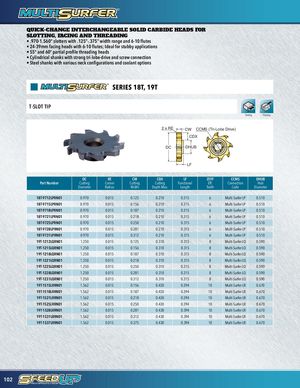

Каталог Ingersoll новинки 2021 - страница 102

QUICK-CHANGE INTERCHANGEABLE SOLID CARBIDE HEADS FOR SLOTTING, FACING AND THREADING • .970-1.560" slotters with .125”-.375” width range and 6-10 flutes • 24-39mm facing heads with 6-10 flutes; Ideal for stubby applications • 55° and 60° partial profile threading heads • Cylindrical shanks with strong tri-lobe-drive and screw connection • Steel shanks with various neck configurations and coolant options SERIES 18T, 19T T-SLOT TIP Slotting T-Slotting 2 x RE CW CCMS (Tri-Lobe Drive) CDX DC DHUB LF DC RE CW CDX LF ZEFF CCMS DHUB Part Number Cutting Corner Cutting Cutting Functional Eff. Connection Hub Diameter Radius Width Depth Max. Length Teeth Code Diameter 18T-9712LPRN01 0.970 0.015 0.125 0.210 0.315 6 Multi-Surfer LP 0.510 18T-9715LPRN01 0.970 0.015 0.156 0.210 0.315 6 Multi-Surfer LP 0.510 18T-9718LPRN01 0.970 0.015 0.187 0.210 0.315 6 Multi-Surfer LP 0.510 18T-9721LPRN01 0.970 0.015 0.218 0.210 0.315 6 Multi-Surfer LP 0.510 18T-9725LPRN01 0.970 0.015 0.250 0.210 0.315 6 Multi-Surfer LP 0.510 18T-9728LPRN01 0.970 0.015 0.281 0.210 0.315 6 Multi-Surfer LP 0.510 18T-9731LPRN01 0.970 0.015 0.312 0.210 0.315 6 Multi-Surfer LP 0.510 19T-1212LQRN01 1.250 0.015 0.125 0.310 0.315 8 Multi-Surfer LQ 0.590 19T-1215LQRN01 1.250 0.015 0.156 0.310 0.315 8 Multi-Surfer LQ 0.590 19T-1218LQRN01 1.250 0.015 0.187 0.310 0.315 8 Multi-Surfer LQ 0.590 19T-1221LQRN01 1.250 0.015 0.218 0.310 0.315 8 Multi-Surfer LQ 0.590 19T-1225LQRN01 1.250 0.015 0.250 0.310 0.315 8 Multi-Surfer LQ 0.590 19T-1228LQRN01 1.250 0.015 0.281 0.310 0.315 8 Multi-Surfer LQ 0.590 19T-1231LQRN01 1.250 0.015 0.312 0.310 0.315 8 Multi-Surfer LQ 0.590 19T-1515LRRN01 1.562 0.015 0.156 0.430 0.394 10 Multi-Surfer LR 0.670 19T-1518LRRN01 1.562 0.015 0.187 0.430 0.394 10 Multi-Surfer LR 0.670 19T-1521LRRN01 1.562 0.015 0.218 0.430 0.394 10 Multi-Surfer LR 0.670 19T-1525LRRN01 1.562 0.015 0.250 0.430 0.394 10 Multi-Surfer LR 0.670 19T-1528LRRN01 1.562 0.015 0.281 0.430 0.394 10 Multi-Surfer LR 0.670 19T-1531LRRN01 1.562 0.015 0.312 0.430 0.394 10 Multi-Surfer LR 0.670 19T-1537LRRN01 1.562 0.015 0.375 0.430 0.394 10 Multi-Surfer LR 0.670 102
