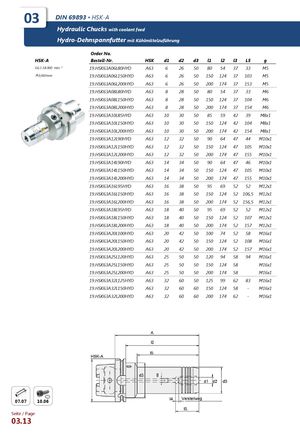

03 DIN 69893 ▪ HSK-A Hydraulic Chucks with coolant feed Hydro-Dehnspannfutter mit Kühlmittelzuführung Order No. HSK-A Bestell-Nr. HSK d1 d2 d3 l1 l2 l3 L5 g G6.3 18.000 min -1 19.HSK63A06L80HYD A63 6 26 50 80 54 37 33 M5  0,003mm 19.HSK63A06L150HYD A63 6 26 50 150 124 37 103 M5 19.HSK63A06L200HYD A63 6 26 50 200 174 37 153 M5 19.HSK63A08L80HYD A63 8 28 50 80 54 37 33 M6 19.HSK63A08L150HYD A63 8 28 50 150 124 37 104 M6 19.HSK63A08L200HYD A63 8 28 50 200 174 37 154 M6 19.HSK63A10L85HYD A63 10 30 50 85 59 42 39 M8x1 19.HSK63A10L150HYD A63 10 30 50 150 124 42 104 M8x1 19.HSK63A10L200HYD A63 10 30 50 200 174 42 154 M8x1 19.HSK63A12L90HYD A63 12 32 50 90 64 47 44 M10x1 19.HSK63A12L150HYD A63 12 32 50 150 124 47 105 M10x1 19.HSK63A12L200HYD A63 12 32 50 200 174 47 155 M10x1 19.HSK63A14L90HYD A63 14 34 50 90 64 47 46 M10x1 19.HSK63A14L150HYD A63 14 34 50 150 124 47 105 M10x1 19.HSK63A14L200HYD A63 14 34 50 200 174 47 155 M10x1 19.HSK63A16L95HYD A63 16 38 50 95 69 52 52 M12x1 19.HSK63A16L150HYD A63 16 38 50 150 124 52 106,5 M12x1 19.HSK63A16L200HYD A63 16 38 50 200 174 52 156,5 M12x1 19.HSK63A18L95HYD A63 18 40 50 95 69 52 52 M12x1 19.HSK63A18L150HYD A63 18 40 50 150 124 52 107 M12x1 19.HSK63A18L200HYD A63 18 40 50 200 174 52 157 M12x1 19.HSK63A20L100HYD A63 20 42 50 100 74 52 58 M16x1 19.HSK63A20L150HYD A63 20 42 50 150 124 52 108 M16x1 19.HSK63A20L200HYD A63 20 42 50 200 174 52 157 M16x1 19.HSK63A25L120HYD A63 25 50 50 120 94 58 94 M16x1 19.HSK63A25L150HYD A63 25 50 50 150 124 58 M16x1 19.HSK63A25L200HYD A63 25 50 50 200 174 58 M16x1 19.HSK63A32L125HYD A63 32 60 50 125 99 62 83 M16x1 19.HSK63A32L150HYD A63 32 60 60 150 124 58 - M16x1 19.HSK63A32L200HYD A63 32 60 60 200 174 62 - M16x1 07.07 10.06 Seite / Page 03.13
