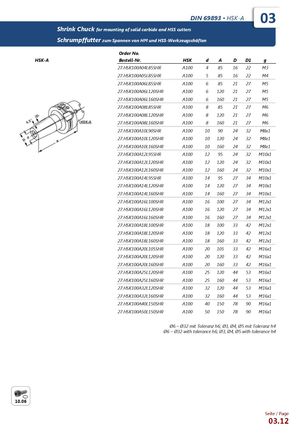

Каталог WSW оправки - страница 66

DIN 69893 ▪ HSK-A 03 Shrink Chuck for mounting of solid carbide and HSS cutters Schrumpffutter zum Spannen von HM und HSS-Werkzeugschäften Order No. HSK-A Bestell-Nr. HSK d A D D1 g 27.HSK100A04L85SHR A100 4 85 16 22 M3 27.HSK100A05L85SHR A100 5 85 16 22 M4 27.HSK100A06L85SHR A100 6 85 21 27 M5 27.HSK100A06L120SHR A100 6 120 21 27 M5 27.HSK100A06L160SHR A100 6 160 21 27 M5 27.HSK100A08L85SHR A100 8 85 21 27 M6 27.HSK100A08L120SHR A100 8 120 21 27 M6 27.HSK100A08L160SHR A100 8 160 21 27 M6 27.HSK100A10L90SHR A100 10 90 24 32 M8x1 27.HSK100A10L120SHR A100 10 120 24 32 M8x1 27.HSK100A10L160SHR A100 10 160 24 32 M8x1 27.HSK100A12L95SHR A100 12 95 24 32 M10x1 27.HSK100A12L120SHR A100 12 120 24 32 M10x1 27.HSK100A12L160SHR A100 12 160 24 32 M10x1 27.HSK100A14L95SHR A100 14 95 27 34 M10x1 27.HSK100A14L120SHR A100 14 120 27 34 M10x1 27.HSK100A14L160SHR A100 14 160 27 34 M10x1 27.HSK100A16L100SHR A100 16 100 27 34 M12x1 27.HSK100A16L120SHR A100 16 120 27 34 M12x1 27.HSK100A16L160SHR A100 16 160 27 34 M12x1 27.HSK100A18L100SHR A100 18 100 33 42 M12x1 27.HSK100A18L120SHR A100 18 120 33 42 M12x1 27.HSK100A18L160SHR A100 18 160 33 42 M12x1 27.HSK100A20L105SHR A100 20 105 33 42 M16x1 27.HSK100A20L120SHR A100 20 120 33 42 M16x1 27.HSK100A20L160SHR A100 20 160 33 42 M16x1 27.HSK100A25L120SHR A100 25 120 44 53 M16x1 27.HSK100A25L160SHR A100 25 160 44 53 M16x1 27.HSK100A32L120SHR A100 32 120 44 53 M16x1 27.HSK100A32L160SHR A100 32 160 44 53 M16x1 27.HSK100A40L150SHR A100 40 150 78 90 M16x1 27.HSK100A50L150SHR A100 50 150 78 90 M16x1 Ø6 – Ø32 mit Toleranz h6; Ø3, Ø4, Ø5 mit Toleranz h4 Ø6 – Ø32 with tolerance h6; Ø3, Ø4, Ø5 with tolerance h4 10.06 Seite / Page 03.12
