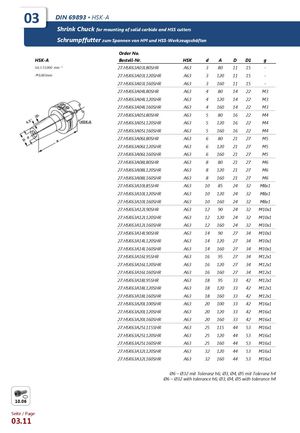

03 DIN 69893 ▪ HSK-A Shrink Chuck for mounting of solid carbide and HSS cutters Schrumpffutter zum Spannen von HM und HSS-Werkzeugschäften Order No. HSK-A Bestell-Nr. HSK d A D D1 g G6.3 15.000 min -1 27.HSK63A03L80SHR A63 3 80 11 15 -  0,003mm 27.HSK63A03L120SHR A63 3 120 11 15 - 27.HSK63A03L160SHR A63 3 160 11 15 - 27.HSK63A04L80SHR A63 4 80 14 22 M3 27.HSK63A04L120SHR A63 4 120 14 22 M3 27.HSK63A04L160SHR A63 4 160 14 22 M3 27.HSK63A05L80SHR A63 5 80 16 22 M4 27.HSK63A05L120SHR A63 5 120 16 22 M4 27.HSK63A05L160SHR A63 5 160 16 22 M4 27.HSK63A06L80SHR A63 6 80 21 27 M5 27.HSK63A06L120SHR A63 6 120 21 27 M5 27.HSK63A06L160SHR A63 6 160 21 27 M5 27.HSK63A08L80SHR A63 8 80 21 27 M6 27.HSK63A08L120SHR A63 8 120 21 27 M6 27.HSK63A08L160SHR A63 8 160 21 27 M6 27.HSK63A10L85SHR A63 10 85 24 32 M8x1 27.HSK63A10L120SHR A63 10 120 24 32 M8x1 27.HSK63A10L160SHR A63 10 160 24 32 M8x1 27.HSK63A12L90SHR A63 12 90 24 32 M10x1 27.HSK63A12L120SHR A63 12 120 24 32 M10x1 27.HSK63A12L160SHR A63 12 160 24 32 M10x1 27.HSK63A14L90SHR A63 14 90 27 34 M10x1 27.HSK63A14L120SHR A63 14 120 27 34 M10x1 27.HSK63A14L160SHR A63 14 160 27 34 M10x1 27.HSK63A16L95SHR A63 16 95 27 34 M12x1 27.HSK63A16L120SHR A63 16 120 27 34 M12x1 27.HSK63A16L160SHR A63 16 160 27 34 M12x1 27.HSK63A18L95SHR A63 18 95 33 42 M12x1 27.HSK63A18L120SHR A63 18 120 33 42 M12x1 27.HSK63A18L160SHR A63 18 160 33 42 M12x1 27.HSK63A20L100SHR A63 20 100 33 42 M16x1 27.HSK63A20L120SHR A63 20 120 33 42 M16x1 27.HSK63A20L160SHR A63 20 160 33 42 M16x1 27.HSK63A25L115SHR A63 25 115 44 53 M16x1 27.HSK63A25L120SHR A63 25 120 44 53 M16x1 27.HSK63A25L160SHR A63 25 160 44 53 M16x1 27.HSK63A32L120SHR A63 32 120 44 53 M16x1 27.HSK63A32L160SHR A63 32 160 44 53 M16x1 Ø6 – Ø32 mit Toleranz h6; Ø3, Ø4, Ø5 mit Toleranz h4 Ø6 – Ø32 with tolerance h6; Ø3, Ø4, Ø5 with tolerance h4 10.06 Seite / Page 03.11
