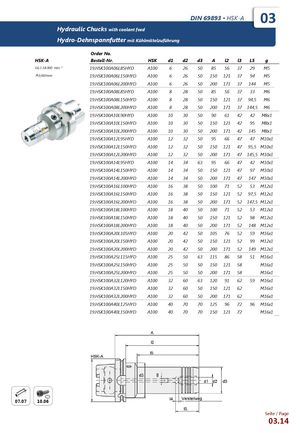

DIN 69893 ▪ HSK-A 03 Hydraulic Chucks with coolant feed Hydro-Dehnspannfutter mit Kühlmittelzuführung Order No. HSK-A Bestell-Nr. HSK d1 d2 d3 A l2 l3 L5 g G6.3 18.000 min -1 19.HSK100A06L85HYD A100 6 26 50 85 56 37 29 M5  0,003mm 19.HSK100A06L150HYD A100 6 26 50 150 121 37 94 M5 19.HSK100A06L200HYD A100 6 26 50 200 171 37 144 M5 19.HSK100A08L85HYD A100 8 28 50 85 56 37 33 M6 19.HSK100A08L150HYD A100 8 28 50 150 121 37 94,5 M6 19.HSK100A08L200HYD A100 8 28 50 200 171 37 144,5 M6 19.HSK100A10L90HYD A100 10 30 50 90 61 42 42 M8x1 19.HSK100A10L150HYD A100 10 30 50 150 121 42 95 M8x1 19.HSK100A10L200HYD A100 10 30 50 200 171 42 145 M8x1 19.HSK100A12L95HYD A100 12 32 50 95 66 47 47 M10x1 19.HSK100A12L150HYD A100 12 32 50 150 121 47 95,5 M10x1 19.HSK100A12L200HYD A100 12 32 50 200 171 47 145,5 M10x1 19.HSK100A14L95HYD A100 14 34 63 95 66 47 42 M10x1 19.HSK100A14L150HYD A100 14 34 50 150 121 47 97 M10x1 19.HSK100A14L200HYD A100 14 34 50 200 171 47 147 M10x1 19.HSK100A16L100HYD A100 16 38 50 100 71 52 53 M12x1 19.HSK100A16L150HYD A100 16 38 50 150 121 52 97,5 M12x1 19.HSK100A16L200HYD A100 16 38 50 200 171 52 147,5 M12x1 19.HSK100A18L100HYD A100 18 40 50 100 71 52 53 M12x1 19.HSK100A18L150HYD A100 18 40 50 150 121 52 98 M12x1 19.HSK100A18L200HYD A100 18 40 50 200 171 52 148 M12x1 19.HSK100A20L105HYD A100 20 42 50 105 76 52 59 M16x1 19.HSK100A20L150HYD A100 20 42 50 150 121 52 99 M12x1 19.HSK100A20L200HYD A100 20 42 50 200 171 52 149 M12x1 19.HSK100A25L115HYD A100 25 50 63 115 86 58 51 M16x1 19.HSK100A25L150HYD A100 25 50 50 150 121 58 M16x1 19.HSK100A25L200HYD A100 25 50 50 200 171 58 M16x1 19.HSK100A32L120HYD A100 32 60 63 120 91 62 59 M16x1 19.HSK100A32L150HYD A100 32 60 50 150 121 62 M16x1 19.HSK100A32L200HYD A100 32 60 50 200 171 62 M16x1 19.HSK100A40L125HYD A100 40 70 70 125 96 72 96 M16x1 19.HSK100A40L150HYD A100 40 70 70 150 121 72 M16x1 07.07 10.06 Seite / Page 03.14
