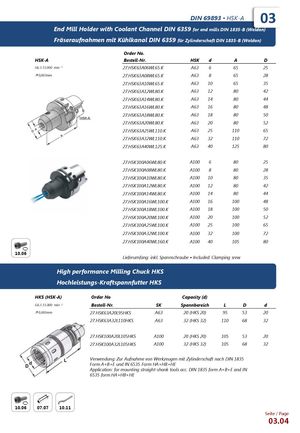

DIN 69893 ▪ HSK-A 03 End Mill Holder with Coolant Channel DIN 6359 for end mills DIN 1835-B (Weldon) Fräseraufnahmen mit Kühlkanal DIN 6359 für Zylinderschaft DIN 1835-B (Weldon) Order No. HSK-A Bestell-Nr. HSK d A D G6.3 15.000 min -1 27.HSK63A06WL65.K A63 6 65 25  0,003mm 27.HSK63A08WL65.K A63 8 65 28 27.HSK63A10WL65.K A63 10 65 35 27.HSK63A12WL80.K A63 12 80 42 27.HSK63A14WL80.K A63 14 80 44 27.HSK63A16WL80.K A63 16 80 48 27.HSK63A18WL80.K A63 18 80 50 27.HSK63A20WL80.K A63 20 80 52 27.HSK63A25WL110.K A63 25 110 65 27.HSK63A32WL110.K A63 32 110 72 27.HSK63A40WL125.K A63 40 125 80 27.HSK100A06WL80.K A100 6 80 25 27.HSK100A08WL80.K A100 8 80 28 27.HSK100A10WL80.K A100 10 80 35 27.HSK100A12WL80.K A100 12 80 42 27.HSK100A14WL80.K A100 14 80 44 27.HSK100A16WL100.K A100 16 100 48 27.HSK100A18WL100.K A100 18 100 50 27.HSK100A20WL100.K A100 20 100 52 27.HSK100A25WL100.K A100 25 100 65 27.HSK100A32WL100.K A100 32 100 72 27.HSK100A40WL160.K A100 40 105 80 10.06 Lieferumfang: inkl. Spannschraube ▪ Included: Clamping srew High performance Milling Chuck HKS Hochleistungs-Kraftspannfutter HKS HKS (HSK-A) Order No Capacity (d) G6.3 15.000 min -1 Bestell-Nr. SK Spannbereich L D d  0,003mm 27.HSK63A20L95HKS A63 20 (HKS 20) 95 53 20 27.HSK63A32L110HKS A63 32 (HKS 32) 110 68 32 27.HSK100A20L105HKS A100 20 (HKS 20) 105 53 20 27.HSK100A32L105HKS A100 32 (HKS 32) 105 68 32 Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft nach DIN 1835 Form A+B+E und IN 6535 Form HA+HB+HE Application: for mounting straight-shank tools acc. DIN 1835 form A+B+E and IN 6535 form HA+HB+HE 10.06 07.07 10.11 Seite / Page 03.04
