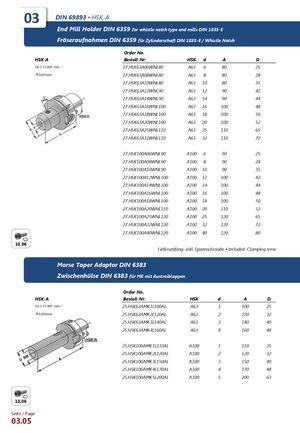

03 DIN 69893 ▪ HSK-A End Mill Holder DIN 6359 for whistle notch type end mills DIN 1835-E Fräseraufnahmen DIN 6359 für Zylinderschaft DIN 1835-E / Whistle Notch Order No. HSK-A Bestell-Nr. HSK d A D G6.3 15.000 min -1 27.HSK63A06WNL80 A63 6 80 25  0,003mm 27.HSK63A08WNL80 A63 8 80 28 27.HSK63A10WNL80 A63 10 80 35 27.HSK63A12WNL90 A63 12 90 42 27.HSK63A14WNL90 A63 14 90 44 27.HSK63A16WNL100 A63 16 100 48 27.HSK63A18WNL100 A63 18 100 50 27.HSK63A20WNL100 A63 20 100 52 27.HSK63A25WNL110 A63 25 110 65 27.HSK63A32WNL110 A63 32 110 72 27.HSK100A06WNL90 A100 6 90 25 27.HSK100A08WNL90 A100 8 90 28 27.HSK100A10WNL90 A100 10 90 35 27.HSK100A12WNL100 A100 12 100 42 27.HSK100A14WNL100 A100 14 100 44 27.HSK100A16WNL100 A100 16 100 48 27.HSK100A18WNL100 A100 18 100 50 27.HSK100A20WNL110 A100 20 110 52 27.HSK100A25WNL120 A100 25 120 65 27.HSK100A32WNL120 A100 32 120 72 27.HSK100A40WNL120 A100 40 120 80 10.06 Lieferumfang: inkl. Spannschraube ▪ Included: Clamping srew Morse Taper Adaptor DIN 6383 Zwischenhülse DIN 6383 für MK mit Austreiblappen Order No. HSK-A Bestell-Nr. HSK d A D G6.3 15.000 min -1 25.HSK63AMK1L100AL A63 1 100 25  0,003mm 25.HSK63AMK2L120AL A63 2 120 32 25.HSK63AMK3L140AL A63 3 140 40 25.HSK63AMK4L160AL A63 4 160 48 25.HSK100AMK1L110AL A100 1 110 25 25.HSK100AMK2L120AL A100 2 120 32 25.HSK100AMK3L150AL A100 3 150 40 25.HSK100AMK4L170AL A100 4 170 48 25.HSK100AMK5L200AL A100 5 200 63 10.06 Seite / Page 03.05
