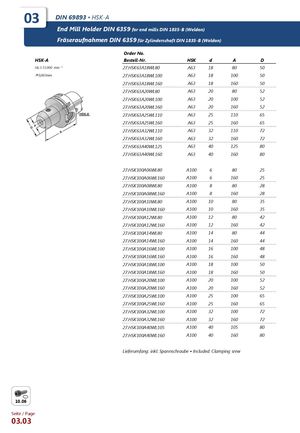

Каталог WSW оправки - страница 57

03 DIN 69893 ▪ HSK-A End Mill Holder DIN 6359 for end mills DIN 1835-B (Weldon) Fräseraufnahmen DIN 6359 für Zylinderschaft DIN 1835-B (Weldon) Order No. HSK-A Bestell-Nr. HSK d A D G6.3 15.000 min -1 27.HSK63A18WL80 A63 18 80 50  0,003mm 27.HSK63A18WL100 A63 18 100 50 27.HSK63A18WL160 A63 18 160 50 27.HSK63A20WL80 A63 20 80 52 27.HSK63A20WL100 A63 20 100 52 27.HSK63A20WL160 A63 20 160 52 27.HSK63A25WL110 A63 25 110 65 27.HSK63A25WL160 A63 25 160 65 27.HSK63A32WL110 A63 32 110 72 27.HSK63A32WL160 A63 32 160 72 27.HSK63A40WL125 A63 40 125 80 27.HSK63A40WL160 A63 40 160 80 27.HSK100A06WL80 A100 6 80 25 27.HSK100A06WL160 A100 6 160 25 27.HSK100A08WL80 A100 8 80 28 27.HSK100A08WL160 A100 8 160 28 27.HSK100A10WL80 A100 10 80 35 27.HSK100A10WL160 A100 10 160 35 27.HSK100A12WL80 A100 12 80 42 27.HSK100A12WL160 A100 12 160 42 27.HSK100A14WL80 A100 14 80 44 27.HSK100A14WL160 A100 14 160 44 27.HSK100A16WL100 A100 16 100 48 27.HSK100A16WL160 A100 16 160 48 27.HSK100A18WL100 A100 18 100 50 27.HSK100A18WL160 A100 18 160 50 27.HSK100A20WL100 A100 20 100 52 27.HSK100A20WL160 A100 20 160 52 27.HSK100A25WL100 A100 25 100 65 27.HSK100A25WL160 A100 25 160 65 27.HSK100A32WL100 A100 32 100 72 27.HSK100A32WL160 A100 32 160 72 27.HSK100A40WL105 A100 40 105 80 27.HSK100A40WL160 A100 40 160 80 Lieferumfang: inkl. Spannschraube ▪ Included: Clamping srew 10.06 Seite / Page 03.03
