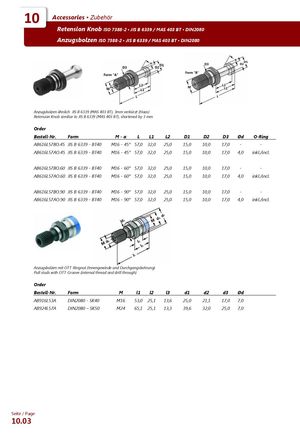

10 Accessories ▪ Zubehör Retension Knob ISO 7388-2 ▪ JIS B 6339 / MAS 403 BT ▪ DIN2080 Anzugsbolzen ISO 7388-2 ▪ JIS B 6339 / MAS 403 BT ▪ DIN2080 Anzugsbolzen ähnlich JIS B 6339 (MAS 403 BT), 3mm verkürzt (Haas) Retension Knob similiar to JIS B 6339 (MAS 403 BT), shortened by 3 mm Order Bestell-Nr. Form M-α L L1 L2 D1 D2 D3 Ød O-Ring AB616L57BO.45 JIS B 6339 - BT40 M16 - 45° 57,0 32,0 25,0 15,0 10,0 17,0 - - AB616L57AO.45 JIS B 6339 - BT40 M16 - 45° 57,0 32,0 25,0 15,0 10,0 17,0 4,0 inkl./incl. AB616L57BO.60 JIS B 6339 - BT40 M16 - 60° 57,0 32,0 25,0 15,0 10,0 17,0 - - AB616L57AO.60 JIS B 6339 - BT40 M16 - 60° 57,0 32,0 25,0 15,0 10,0 17,0 4,0 inkl./incl. AB616L57BO.90 JIS B 6339 - BT40 M16 - 90° 57,0 32,0 25,0 15,0 10,0 17,0 - - AB616L57AO.90 JIS B 6339 - BT40 M16 - 90° 57,0 32,0 25,0 15,0 10,0 17,0 4,0 inkl./incl. Anzugsbolzen mit OTT-Ringnut (Innengewinde und Durchgangsbohrung) Pull studs with OTT-Groove (internal thread and drill through) Order Bestell-Nr. Form M l1 l2 l3 d1 d2 d3 Ød AB916L53A DIN2080 - SK40 M16 53,0 25,1 13,6 25,0 21,1 17,0 7,0 AB924L57A DIN2080 – SK50 M24 65,1 25,1 13,3 39,6 32,0 25,0 7,0 Seite / Page 10.03
