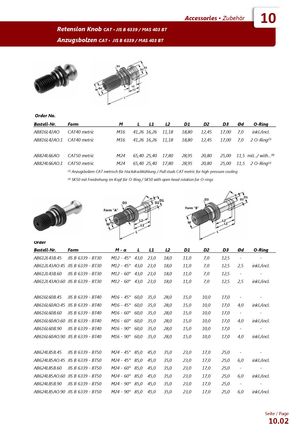

Каталог WSW оправки - страница 148

Accessories ▪ Zubehör 10 Retension Knob CAT ▪ JIS B 6339 / MAS 403 BT Anzugsbolzen CAT ▪ JIS B 6339 / MAS 403 BT Order No. Bestell-Nr. Form M L L1 L2 D1 D2 D3 Ød O-Ring AB816L42AO CAT40 metric M16 41,26 16,26 11,18 18,80 12,45 17,00 7,0 inkl./incl. AB816L42AO.1 CAT40 metric M16 41,26 16,26 11,18 18,80 12,45 17,00 7,0 2 O-Ring(3) AB824L66AO CAT50 metric M24 65,40 25,40 17,80 28,95 20,80 25,00 11,5 mit.../ with...(4) AB824L66AO.1 CAT50 metric M24 65,40 25,40 17,80 28,95 20,80 25,00 11,5 2 O-Ring(3) (3) Anzugsbolzen CAT metrisch für Hockdruckkühlung / Pull studs CAT metric for high-pressure cooling (4) SK50 mit Freidrehung im Kopf für O-Ring / SK50 with open head rotation for O-rings Order Bestell-Nr. Form M-α L L1 L2 D1 D2 D3 Ød O-Ring AB612L43B.45 JIS B 6339 - BT30 M12 - 45° 43,0 23,0 18,0 11,0 7,0 12,5 - - AB612L43AO.45 JIS B 6339 - BT30 M12 - 45° 43,0 23,0 18,0 11,0 7,0 12,5 2,5 inkl./incl. AB612L43B.60 JIS B 6339 - BT30 M12 - 60° 43,0 23,0 18,0 11,0 7,0 12,5 - - AB612L43AO.60 JIS B 6339 - BT30 M12 - 60° 43,0 23,0 18,0 11,0 7,0 12,5 2,5 inkl./incl. AB616L60B.45 JIS B 6339 - BT40 M16 - 45° 60,0 35,0 28,0 15,0 10,0 17,0 - - AB616L60AO.45 JIS B 6339 - BT40 M16 - 45° 60,0 35,0 28,0 15,0 10,0 17,0 4,0 inkl./incl. AB616L60B.60 JIS B 6339 - BT40 M16 - 60° 60,0 35,0 28,0 15,0 10,0 17,0 - - AB616L60AO.60 JIS B 6339 - BT40 M16 - 60° 60,0 35,0 28,0 15,0 10,0 17,0 4,0 inkl./incl. AB616L60B.90 JIS B 6339 - BT40 M16 - 90° 60,0 35,0 28,0 15,0 10,0 17,0 - - AB616L60AO.90 JIS B 6339 - BT40 M16 - 90° 60,0 35,0 28,0 15,0 10,0 17,0 4,0 inkl./incl. AB624L85B.45 JIS B 6339 - BT50 M24 - 45° 85,0 45,0 35,0 23,0 17,0 25,0 - - AB624L85AO.45 JIS B 6339 - BT50 M24 - 45° 85,0 45,0 35,0 23,0 17,0 25,0 6,0 inkl./incl. AB624L85B.60 JIS B 6339 - BT50 M24 - 60° 85,0 45,0 35,0 23,0 17,0 25,0 - - AB624L85AO.60 JIS B 6339 - BT50 M24 - 60° 85,0 45,0 35,0 23,0 17,0 25,0 6,0 inkl./incl. AB624L85B.90 JIS B 6339 - BT50 M24 - 90° 85,0 45,0 35,0 23,0 17,0 25,0 - - AB624L85AO.90 JIS B 6339 - BT50 M24 - 90° 85,0 45,0 35,0 23,0 17,0 25,0 6,0 inkl./incl. Seite / Page 10.02
