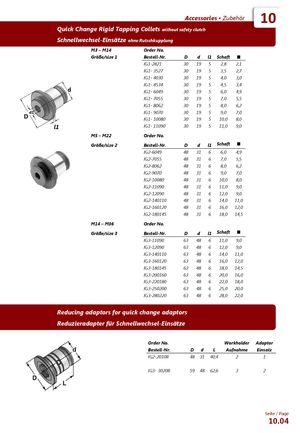

Каталог WSW оправки - страница 150

Accessories ▪ Zubehör 10 Quick Change Rigid Tapping Collets without safety clutch Schnellwechsel-Einsätze ohne Rutschkupplung M3 – M14 Order No. Größe/size 1 Bestell-Nr. D d l1 Schaft ■ IG1-2821 30 19 5 2,8 2,1 IG1- 3527 30 19 5 3,5 2,7 IG1- 4030 30 19 5 4,0 3,0 IG1- 4534 30 19 5 4,5 3,4 IG1- 6049 30 19 5 6,0 4,9 IG1- 7055 30 19 5 7,0 5,5 IG1- 8062 30 19 5 8,0 6,2 IG1- 9070 30 19 5 9,0 7,0 IG1- 10080 30 19 5 10,0 8,0 IG1- 11090 30 19 5 11,0 9,0 M5 – M22 Order No. Größe/size 2 Bestell-Nr. D d l1 Schaft ■ IG2-6049 48 31 6 6,0 4,9 IG2-7055 48 31 6 7,0 5,5 IG2-8062 48 31 6 8,0 6,2 IG2-9070 48 31 6 9,0 7,0 IG2-10080 48 31 6 10,0 8,0 IG2-11090 48 31 6 11,0 9,0 IG2-12090 48 31 6 12,0 9,0 IG2-140110 48 31 6 14,0 11,0 IG2-160120 48 31 6 16,0 12,0 IG2-180145 48 31 6 18,0 14,5 M14 – M36 Order No. Größe/size 3 Bestell-Nr. D d l1 Schaft ■ IG3-11090 63 48 6 11,0 9,0 IG3-12090 63 48 6 12,0 9,0 IG3-140110 63 48 6 14,0 11,0 IG3-160120 63 48 6 16,0 12,0 IG3-180145 63 48 6 18,0 14,5 IG3-200160 63 48 6 20,0 16,0 IG3-220180 63 48 6 22,0 18,0 IG3-250200 63 48 6 25,0 20,0 IG3-280220 63 48 6 28,0 22,0 Reducing adaptors for quick change adaptors Reduzieradapter für Schnellwechsel-Einsätze Order No. Workholder Adaptor Bestell-Nr. D d L Aufnahme Einsatz IG2-2010R 48 31 40,4 2 1 IG3- 3020R 59 48 62,6 3 2 Seite / Page 10.04
