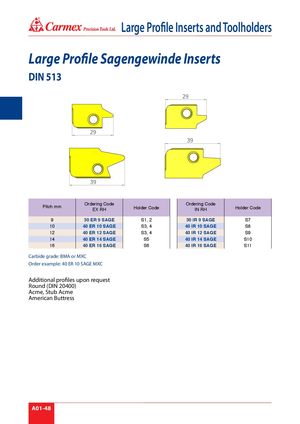

® Large Profile Inserts and Toolholders Large Profile Sagengewinde Inserts DIN 513 Pitch mm Ordering CodeEX RH Holder Code Ordering CodeIN RH Holder Code 9 30 ER 9 SAGE S1, 2 30 IR 9 SAGE S7 10 40 ER 10 SAGE S3, 4 40 IR 10 SAGE S8 12 40 ER 12 SAGE S3, 4 40 IR 12 SAGE S9 14 40 ER 14 SAGE S5 40 IR 14 SAGE S10 16 40 ER 16 SAGE S6 40 IR 16 SAGE S11 Carbide grade: BMA or MXC Order example: 40 ER 10 SAGE MXC Additional profiles upon request Round (DIN 20400) Acme, Stub Acme American Buttress A01-48
