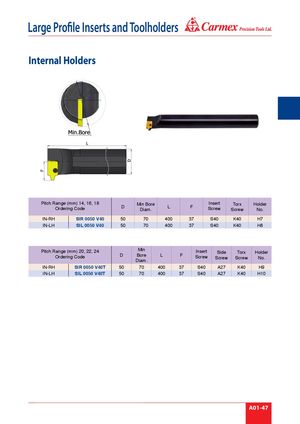

® Large Profile Inserts and Toolholders Internal Holders Pitch Range (mm) 14, 16, 18Ordering CodeD Min BoreDiam. L F Insert Torx HolderScrewScrewNo. IN-RH SIR 0050 V40 50 70 400 37 S40 K40 H7 IN-LH SIL 0050 V40 50 70 400 37 S40 K40 H8 Pitch Range (mm) 20, 22, 24Ordering Code MinDBore LDiam. F Insert Side Torx HolderScrewScrewScrewNo. IN-RH SIR 0050 V40T 50 70 400 37 S40 A27 K40 H9 IN-LH SIL 0050 V40T 50 70 400 37 S40 A27 K40 H10 A01-47
