Каталог Carmex общий 2021 - страница 63

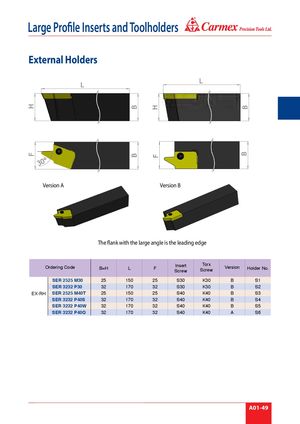

® Large Profile Inserts and Toolholders External Holders Version A Version B The flank with the large angle is the leading edge Ordering Code B=H L F InsertScrew TorxScrew Version Holder No. SER 2525 M30 25 150 25 S30 K30 B S1 SER 3232 P30 32 170 32 S30 K30 B S2 EX-RH SER 2525 M40T 25 150 25 S40 K40 B S3 SER 3232 P40S 32 170 32 S40 K40 B S4 SER 3232 P40W 32 170 32 S40 K40 B S5 SER 3232 P40Q 32 170 32 S40 K40 A S6 A01-49
