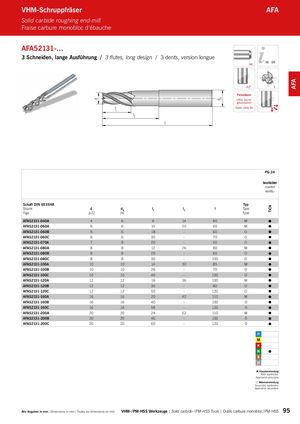

d dA TiCN AFA l VHM-Schruppfräser AFA Solid carbide roughing end-mill Fraise carbure monobloc d‘ébauche AFA52131-… 3 Schneiden, lange Ausführung / 3 flutes, long design / 3 dents, version longue HA 98 – 106 42° 3 Feinstkorn Ultra micro granulation l1 Grain ultra fin l2 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Typ Shank d dA l1 l2 l Type Tige js12 h6 Type AFA52131-040A 4 6 6 14 60 M  AFA52131-060A 6 6 10 20 65 M  AFA52131-060B 6 6 18 - 60 O  AFA52131-060C 6 6 30 - 70 O  AFA52131-070A 7 8 20 - 65 O  AFA52131-080A 8 8 12 26 80 M  AFA52131-080B 8 8 20 - 65 O  AFA52131-080C 8 8 30 - 100 O  AFA52131-100A 10 10 14 30 85 M  AFA52131-100B 10 10 26 - 70 O  AFA52131-100C 10 10 40 - 100 O  AFA52131-120A 12 12 16 36 100 M  AFA52131-120B 12 12 30 - 80 O  AFA52131-120C 12 12 50 - 120 O  AFA52131-160A 16 16 20 42 110 M  AFA52131-160B 16 16 40 - 100 O  AFA52131-160C 16 16 56 - 120 O  AFA52131-200A 20 20 24 52 110 M  AFA52131-200B 20 20 46 - 100 O  AFA52131-200C 20 20 60 - 120 O    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 95
