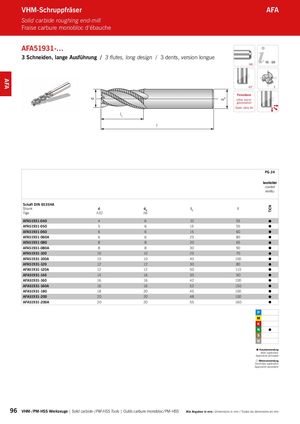

Каталог ARNO монолитный осевой инструмент - страница 96

AFA d dA TiCN l VHM-Schruppfräser AFA Solid carbide roughing end-mill Fraise carbure monobloc d‘ébauche AFA51931-… 3 Schneiden, lange Ausführung / 3 flutes, long design / 3 dents, version longue HA 98 – 106 45° 3 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige h10 h6 AFA51931-040 4 6 10 55  AFA51931-050 5 6 15 55  AFA51931-060 6 6 15 60  AFA51931-060A 6 6 25 80  AFA51931-080 8 8 20 65  AFA51931-080A 8 8 30 90  AFA51931-100 10 10 25 70  AFA51931-100A 10 10 40 100  AFA51931-120 12 12 30 80  AFA51931-120A 12 12 50 110  AFA51931-140 14 16 35 90  AFA51931-160 16 16 42 100  AFA51931-160A 16 16 52 150  AFA51931-180 18 20 45 100  AFA51931-200 20 20 48 100  AFA51931-200A 20 20 55 160    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 96 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
