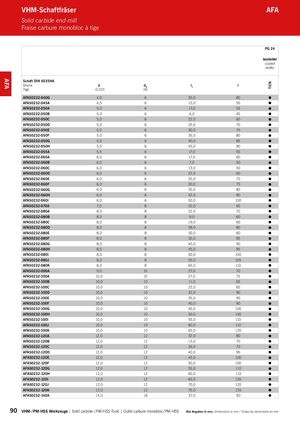

Каталог ARNO монолитный осевой инструмент - страница 90

TiCN AFA VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,015 h6 AFA50232-040G 4,0 6 30,0 80  AFA50232-045A 4,5 6 15,0 55  AFA50232-050A 5,0 6 17,0 55  AFA50232-050B 5,0 6 6,0 45  AFA50232-050C 5,0 6 22,0 60  AFA50232-050D 5,0 6 25,0 70  AFA50232-050E 5,0 6 30,0 75  AFA50232-050F 5,0 6 35,0 80  AFA50232-050G 5,0 6 40,0 85  AFA50232-050H 5,0 6 45,0 90  AFA50232-055A 5,5 6 17,0 55  AFA50232-060A 6,0 6 17,0 60  AFA50232-060B 6,0 6 7,0 50  AFA50232-060C 6,0 6 13,0 50  AFA50232-060D 6,0 6 22,0 60  AFA50232-060E 6,0 6 25,0 70  AFA50232-060F 6,0 6 30,0 75  AFA50232-060G 6,0 6 35,0 80  AFA50232-060H 6,0 6 42,0 90  AFA50232-060I 6,0 6 50,0 100  AFA50232-070A 7,0 8 22,0 65  AFA50232-080A 8,0 8 22,0 70  AFA50232-080B 8,0 8 9,0 60  AFA50232-080C 8,0 8 19,0 60  AFA50232-080D 8,0 8 28,0 80  AFA50232-080E 8,0 8 30,0 80  AFA50232-080F 8,0 8 35,0 85  AFA50232-080G 8,0 8 40,0 90  AFA50232-080H 8,0 8 45,0 95  AFA50232-080I 8,0 8 50,0 100  AFA50232-080J 8,0 8 55,0 105  AFA50232-080K 8,0 8 65,0 110  AFA50232-090A 9,0 10 27,0 70  AFA50232-100A 10,0 10 27,0 75  AFA50232-100B 10,0 10 11,0 65  AFA50232-100C 10,0 10 22,0 65  AFA50232-100D 10,0 10 32,0 90  AFA50232-100E 10,0 10 35,0 90  AFA50232-100F 10,0 10 40,0 90  AFA50232-100G 10,0 10 45,0 100  AFA50232-100H 10,0 10 50,0 100  AFA50232-100I 10,0 10 55,0 110  AFA50232-100J 10,0 10 60,0 110  AFA50232-100K 10,0 10 65,0 120  AFA50232-120A 12,0 12 32,0 80  AFA50232-120B 12,0 12 13,0 70  AFA50232-120C 12,0 12 26,0 70  AFA50232-120D 12,0 12 40,0 95  AFA50232-120E 12,0 12 45,0 100  AFA50232-120F 12,0 12 50,0 100  AFA50232-120G 12,0 12 55,0 110  AFA50232-120H 12,0 12 60,0 110  AFA50232-120I 12,0 12 65,0 120  AFA50232-120J 12,0 12 70,0 120  AFA50232-120K 12,0 12 75,0 135  AFA50232-140A 14,0 16 37,0 90  90 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
