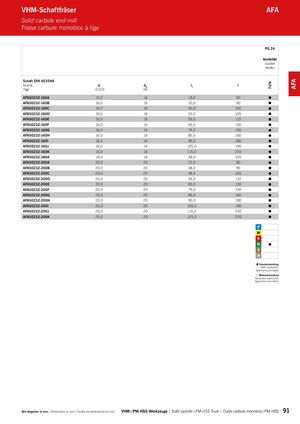

Каталог ARNO монолитный осевой инструмент - страница 91

TiCN AFA VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,015 h6 AFA50232-160A 16,0 16 18,0 90  AFA50232-160B 16,0 16 32,0 90  AFA50232-160C 16,0 16 42,0 100  AFA50232-160D 16,0 16 52,0 105  AFA50232-160E 16,0 16 55,0 110  AFA50232-160F 16,0 16 65,0 130  AFA50232-160G 16,0 16 75,0 150  AFA50232-160H 16,0 16 85,0 160  AFA50232-160I 16,0 16 95,0 180  AFA50232-160J 16,0 16 105,0 190  AFA50232-160K 16,0 16 115,0 200  AFA50232-180A 18,0 16 48,0 100  AFA50232-200A 20,0 20 22,0 90  AFA50232-200B 20,0 20 38,0 90  AFA50232-200C 20,0 20 48,0 100  AFA50232-200D 20,0 20 55,0 110  AFA50232-200E 20,0 20 65,0 130  AFA50232-200F 20,0 20 75,0 150  AFA50232-200G 20,0 20 85,0 160  AFA50232-200H 20,0 20 95,0 180  AFA50232-200I 20,0 20 105,0 190  AFA50232-200J 20,0 20 115,0 200  AFA50232-200K 20,0 20 125,0 220    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 91
