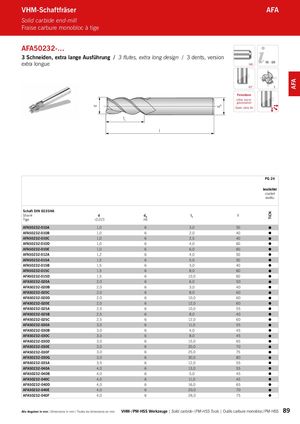

Каталог ARNO монолитный осевой инструмент - страница 89

d dA TiCN AFA l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA50232-… 3 Schneiden, extra lange Ausführung / 3 flutes, extra long design / 3 dents, version extra longue HA 98 – 106 45° 3 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,015 h6 AFA50232-010A 1,0 6 3,0 50  AFA50232-010B 1,0 6 2,0 40  AFA50232-010C 1,0 6 2,5 40  AFA50232-010D 1,0 6 4,0 60  AFA50232-010E 1,0 6 6,0 60  AFA50232-012A 1,2 6 4,0 50  AFA50232-015A 1,5 6 5,0 50  AFA50232-015B 1,5 6 3,0 40  AFA50232-015C 1,5 6 8,0 60  AFA50232-015D 1,5 6 10,0 60  AFA50232-020A 2,0 6 6,0 50  AFA50232-020B 2,0 6 3,0 40  AFA50232-020C 2,0 6 8,0 60  AFA50232-020D 2,0 6 10,0 60  AFA50232-020E 2,0 6 12,0 60  AFA50232-025A 2,5 6 10,0 55  AFA50232-025B 2,5 6 8,0 40  AFA50232-025C 2,5 6 12,0 60  AFA50232-030A 3,0 6 11,0 55  AFA50232-030B 3,0 6 4,0 45  AFA50232-030C 3,0 6 8,0 45  AFA50232-030D 3,0 6 15,0 65  AFA50232-030E 3,0 6 20,0 70  AFA50232-030F 3,0 6 25,0 75  AFA50232-030G 3,0 6 30,0 80  AFA50232-035A 3,5 6 12,0 55  AFA50232-040A 4,0 6 13,0 55  AFA50232-040B 4,0 6 5,0 45  AFA50232-040C 4,0 6 11,0 45  AFA50232-040D 4,0 6 16,0 65  AFA50232-040E 4,0 6 20,0 70  AFA50232-040F 4,0 6 26,0 75  Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 89
