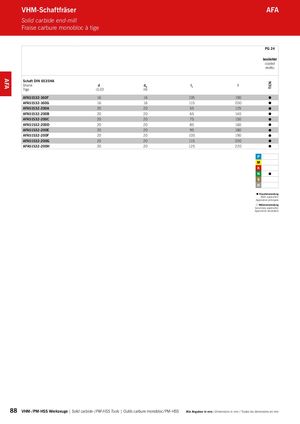

Каталог ARNO монолитный осевой инструмент - страница 88

TiCN AFA VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFA51532-160F 16 16 105 190  AFA51532-160G 16 16 115 200  AFA51532-200A 20 20 55 125  AFA51532-200B 20 20 65 140  AFA51532-200C 20 20 75 150  AFA51532-200D 20 20 85 160  AFA51532-200E 20 20 95 180  AFA51532-200F 20 20 105 190  AFA51532-200G 20 20 115 200  AFA51532-200H 20 20 125 220    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 88 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
