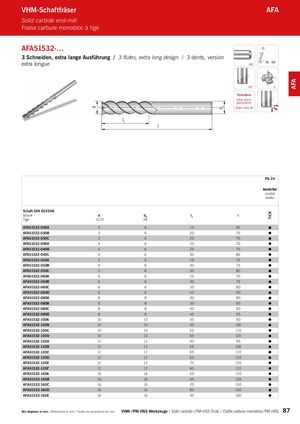

Каталог ARNO монолитный осевой инструмент - страница 87

d dA TiCN AFA l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA51532-… 3 Schneiden, extra lange Ausführung / 3 flutes, extra long design / 3 dents, version extra longue HA 98 – 106 45° 3 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFA51532-030A 3 6 15 65  AFA51532-030B 3 6 20 70  AFA51532-030C 3 6 25 75  AFA51532-040A 4 6 20 70  AFA51532-040B 4 6 25 75  AFA51532-040C 4 6 30 80  AFA51532-050A 5 6 25 70  AFA51532-050B 5 6 30 75  AFA51532-050C 5 6 35 80  AFA51532-060A 6 6 25 70  AFA51532-060B 6 6 30 75  AFA51532-060C 6 6 35 80  AFA51532-060D 6 6 42 90  AFA51532-080A 8 8 30 80  AFA51532-080B 8 8 35 85  AFA51532-080C 8 8 40 90  AFA51532-080D 8 8 45 95  AFA51532-100A 10 10 35 90  AFA51532-100B 10 10 45 100  AFA51532-100C 10 10 55 110  AFA51532-100D 10 10 65 120  AFA51532-120A 12 12 40 95  AFA51532-120B 12 12 45 100  AFA51532-120C 12 12 55 110  AFA51532-120D 12 12 65 120  AFA51532-120E 12 12 75 135  AFA51532-120F 12 12 60 110  AFA51532-160A 16 16 55 120  AFA51532-160B 16 16 65 135  AFA51532-160C 16 16 75 150  AFA51532-160D 16 16 85 160  AFA51532-160E 16 16 95 180  Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 87
