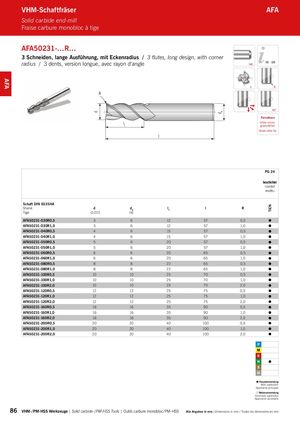

AFA d dA TiCN l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA50231-…R… 3 Schneiden, lange Ausführung, mit Eckenradius / 3 flutes, long design, with corner radius / 3 dents, version longue, avec rayon d‘angle HA 98 – 106 3 R R 45° Feinstkorn l1 Ultra microgranulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l R Tige -0,015 h6 AFA50231-030R0,5 3 6 12 57 0,5  AFA50231-030R1,0 3 6 12 57 1,0  AFA50231-040R0,5 4 6 15 57 0,5  AFA50231-040R1,0 4 6 15 57 1,0  AFA50231-050R0,5 5 6 20 57 0,5  AFA50231-050R1,0 5 6 20 57 1,0  AFA50231-060R0,5 6 6 20 65 0,5  AFA50231-060R1,0 6 6 20 65 1,0  AFA50231-080R0,5 8 8 22 65 0,5  AFA50231-080R1,0 8 8 22 65 1,0  AFA50231-100R0,5 10 10 25 70 0,5  AFA50231-100R1,0 10 10 25 70 1,0  AFA50231-100R2,0 10 10 25 70 2,0  AFA50231-120R0,5 12 12 25 75 0,5  AFA50231-120R1,0 12 12 25 75 1,0  AFA50231-120R2,0 12 12 25 75 2,0  AFA50231-160R0,5 16 16 35 90 0,5  AFA50231-160R1,0 16 16 35 90 1,0  AFA50231-160R2,0 16 16 35 90 2,0  AFA50231-200R0,5 20 20 40 100 0,5  AFA50231-200R1,0 20 20 40 100 1,0  AFA50231-200R2,0 20 20 40 100 2,0    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 86 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
