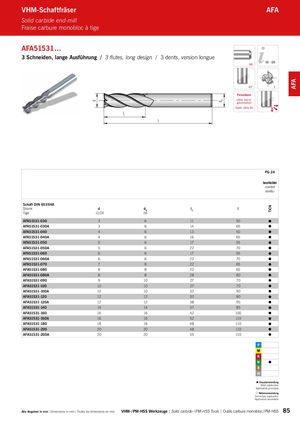

Каталог ARNO монолитный осевой инструмент - страница 85

d dA TiCN AFA l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA51531… 3 Schneiden, lange Ausführung / 3 flutes, long design / 3 dents, version longue HA 98 – 106 45° 3 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFA51531-030 3 6 11 50  AFA51531-030A 3 6 14 65  AFA51531-040 4 6 13 50  AFA51531-040A 4 6 16 65  AFA51531-050 5 6 17 55  AFA51531-050A 5 6 22 70  AFA51531-060 6 6 17 55  AFA51531-060A 6 6 22 70  AFA51531-070 7 8 22 65  AFA51531-080 8 8 22 65  AFA51531-080A 8 8 28 80  AFA51531-090 9 10 27 70  AFA51531-100 10 10 27 70  AFA51531-100A 10 10 32 90  AFA51531-120 12 12 32 80  AFA51531-120A 12 12 38 95  AFA51531-140 14 14 37 85  AFA51531-160 16 16 42 100  AFA51531-160A 16 16 52 110  AFA51531-180 18 16 48 110  AFA51531-200 20 20 48 110  AFA51531-200A 20 20 55 110    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 85
