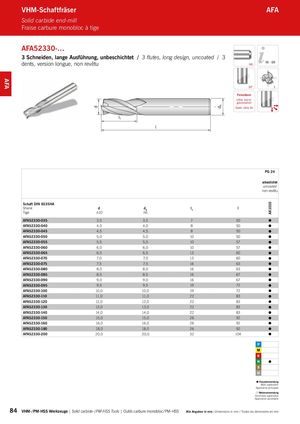

AFA d dA AK1010 l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA52330-… 3 Schneiden, lange Ausführung, unbeschichtet / 3 flutes, long design, uncoated / 3 dents, version longue, non revêtu HA 98 – 106 30° 3 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 unbeschichtet uncoated non-revêtu Schaft DIN 6535HA Shank d dA l1 l Tige h10 h6 AFA52330-035 3,5 3,5 7 50  AFA52330-040 4,0 4,0 8 50  AFA52330-045 4,5 4,5 8 50  AFA52330-050 5,0 5,0 10 50  AFA52330-055 5,5 5,5 10 57  AFA52330-060 6,0 6,0 10 57  AFA52330-065 6,5 6,5 13 60  AFA52330-070 7,0 7,0 13 60  AFA52330-075 7,5 7,5 16 63  AFA52330-080 8,0 8,0 16 63  AFA52330-085 8,5 8,5 16 67  AFA52330-090 9,0 9,0 16 67  AFA52330-095 9,5 9,5 19 72  AFA52330-100 10,0 10,0 19 72  AFA52330-110 11,0 11,0 22 83  AFA52330-120 12,0 12,0 22 83  AFA52330-130 13,0 13,0 22 83  AFA52330-140 14,0 14,0 22 83  AFA52330-150 15,0 15,0 26 92  AFA52330-160 16,0 16,0 26 92  AFA52330-180 18,0 18,0 26 92  AFA52330-200 20,0 20,0 32 104    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 84 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
