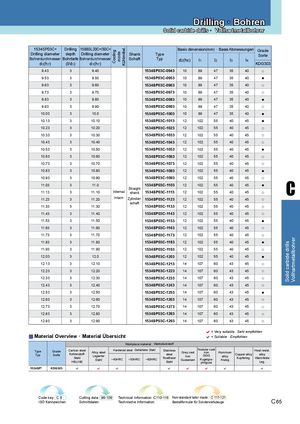

Drilling · Bohren
Solid carbide drills · Vollhartmetallbohrer

1534SP03C∗ Drilling 1588SL20C∗/30C∗ Basic dimension(mm) · Basis Abmessungen Grade


Kühlmittel.
Cooling
Drilling diameter depth Drilling diameter


mode
Shank Type Sorte
Bohrerdurchmesser Bohrtiefe Bohrerdurchmesser Schaft Typ d2(h6) l1 l2 l3 l4
d1(h7) (l/d1) d1(h7) KDG303
9.43 3 9.40 1534SP03C-0943 10 89 47 35 40 ○
9.53 3 9.50 1534SP03C-0953 10 89 47 35 40 ●
9.63 3 9.60 1534SP03C-0963 10 89 47 35 40 ○
9.73 3 9.70 1534SP03C-0973 10 89 47 35 40 ○
9.83 3 9.80 1534SP03C-0983 10 89 47 35 40 ●
9.93 3 9.90 1534SP03C-0993 10 89 47 35 40 ○
10.03 3 10.0 1534SP03C-1003 10 89 47 35 40 ●
10.13 3 10.10 1534SP03C-1013 12 102 55 40 45 ●
10.23 3 10.20 1534SP03C-1023 12 102 55 40 45 ○
10.33 3 10.30 1534SP03C-1033 12 102 55 40 45 ○
10.43 3 10.40 1534SP03C-1043 12 102 55 40 45 ○
10.53 3 10.50 1534SP03C-1053 12 102 55 40 45 ●
10.63 3 10.60 1534SP03C-1063 12 102 55 40 45 ○
10.73 3 10.70 1534SP03C-1073 12 102 55 40 45 ○
10.83 3 10.80 1534SP03C-1083 12 102 55 40 45 ●


C
10.93 3 10.90 1534SP03C-1093 12 102 55 40 45 ○
11.03 3 11.0 1534SP03C-1103 12 102 55 40 45 ●
Straight
11.13 3 11.10 Internal shank 1534SP03C-1113 12 102 55 40 45 ○
Intern
11.23 3 11.20 Zylinder- 1534SP03C-1123 12 102 55 40 45 ○
schaft
11.33 3 11.30 1534SP03C-1133 12 102 55 40 45 ○
11.43 3 11.40 1534SP03C-1143 12 102 55 40 45 ○
11.53 3 11.50 1534SP03C-1153 12 102 55 40 45 ●
11.63 3 11.60 1534SP03C-1163 12 102 55 40 45 ○
11.73 3 11.70 1534SP03C-1173 12 102 55 40 45 ○


Vollhartmetallbohrer
11.83 3 11.80 1534SP03C-1183 12 102 55 40 45 ●


Solid carbide drills
11.93 3 11.90 1534SP03C-1193 12 102 55 40 45 ○
12.03 3 12.0 1534SP03C-1203 12 102 55 40 45 ●
12.13 3 12.10 1534SP03C-1213 14 107 60 43 45 ○
12.23 3 12.20 1534SP03C-1223 14 107 60 43 45 ○
12.33 3 12.30 1534SP03C-1233 14 107 60 43 45 ○
12.43 3 12.40 1534SP03C-1243 14 107 60 43 45 ○
12.53 3 12.50 1534SP03C-1253 14 107 60 43 45 ●
12.63 3 12.60 1534SP03C-1263 14 107 60 43 45 ○
12.73 3 12.70 1534SP03C-1273 14 107 60 43 45 ○
12.83 3 12.80 1534SP03C-1283 14 107 60 43 45 ○
12.93 3 12.90 1534SP03C-1293 14 107 60 43 45 ○
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material ∙ Werkstückstoff
Carbon steel Hardened steel · Gehärteter Stahl Stainless Nodular cast Heat resist.
Type Grade Alloy steel Grey cast iron Aluminum
Typ Sorte Kohlenstoff- steel GGG Copper alloy alloy
Legierter iron alloy
Stahl Rostfreier Kupferleg. Warmfeste
Stahl ~40HRC ~50HRC ~60HRC Gusseisen Kugelgra- Aluleg.
HB≤180 Stahl phitguss Leg.
1534SP* KDG303        


Code key C 8 Cutting data 96-109 Technical Information C110-116 Non-standard tailor made C 117-121
ISO Kennzeichen Schnittdaten Technische Information Bestellformular für Sonderwerkzeuge C 65
