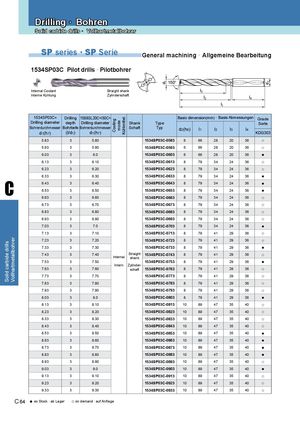

Каталог ZCC-CT сверла монолитные - страница 64

Drilling · Bohren
Solid carbide drills · Vollhartmetallbohrer
140°


d1


d2
l3
SP series · SP Serie
l2 l4
General machining · Allgemeine
l1 Bearbeitung
1534SP03C Pilot drills · Pilotbohrer
150°


d1


d2
Internal Coolant Straight shank l3
Interne Kühlung Zylinderschaft
l2 l4
l1

1534SP03C∗ Drilling 1588SL20C∗/30C∗ Basic dimension(mm) · Basis Abmessungen Grade
Kühlmittel.
Cooling
Drilling diameter depth Drilling diameter
mode
Shank Type Sorte
Bohrerdurchmesser Bohrtiefe Bohrerdurchmesser Schaft Typ d2(h6) l1 l2 l3 l4
d1(h7) (l/d1) d1(h7) KDG303
5.83 3 5.80 1534SP03C-0583 6 66 28 20 36 ○
5.93 3 5.90 1534SP03C-0593 6 66 28 20 36 ○
6.03 3 6.0 1534SP03C-0603 6 66 28 20 36 ●
6.13 3 6.10 1534SP03C-0613 8 79 34 24 36 ○
6.23 3 6.20 1534SP03C-0623 8 79 34 24 36 ○
6.33 3 6.30 1534SP03C-0633 8 79 34 24 36 ●

C
6.43 3 6.40 1534SP03C-0643 8 79 34 24 36 ●
6.53 3 6.50 1534SP03C-0653 8 79 34 24 36 ●
6.63 3 6.60 1534SP03C-0663 8 79 34 24 36 ○
6.73 3 6.70 1534SP03C-0673 8 79 34 24 36 ○
6.83 3 6.80 1534SP03C-0683 8 79 34 24 36 ○
6.93 3 6.90 1534SP03C-0693 8 79 34 24 36 ○
7.03 3 7.0 1534SP03C-0703 8 79 34 24 36 ●
7.13 3 7.10 1534SP03C-0713 8 79 41 29 36 ○
Vollhartmetallbohrer


7.23 3 7.20 1534SP03C-0723 8 79 41 29 36 ○
Solid carbide drills


7.33 3 7.30 1534SP03C-0733 8 79 41 29 36 ●
7.43 3 7.40 Straight 1534SP03C-0743 8 79 41 29 36 ○
Internal shank
7.53 3 7.50 1534SP03C-0753 8 79 41 29 36 ●
Intern Zylinder-
7.63 3 7.60 schaft 1534SP03C-0763 8 79 41 29 36 ○
7.73 3 7.70 1534SP03C-0773 8 79 41 29 36 ○
7.83 3 7.80 1534SP03C-0783 8 79 41 29 36 ○
7.93 3 7.90 1534SP03C-0793 8 79 41 29 36 ○
8.03 3 8.0 1534SP03C-0803 8 79 41 29 36 ●
8.13 3 8.10 1534SP03C-0813 10 89 47 35 40 ○
8.23 3 8.20 1534SP03C-0823 10 89 47 35 40 ○
8.33 3 8.30 1534SP03C-0833 10 89 47 35 40 ○
8.43 3 8.40 1534SP03C-0843 10 89 47 35 40 ○
8.53 3 8.50 1534SP03C-0853 10 89 47 35 40 ●
8.63 3 8.60 1534SP03C-0863 10 89 47 35 40 ●
8.73 3 8.70 1534SP03C-0873 10 89 47 35 40 ●
8.83 3 8.80 1534SP03C-0883 10 89 47 35 40 ●
8.93 3 8.90 1534SP03C-0893 10 89 47 35 40 ○
9.03 3 9.0 1534SP03C-0903 10 89 47 35 40 ●
9.13 3 9.10 1534SP03C-0913 10 89 47 35 40 ○
9.23 3 9.20 1534SP03C-0923 10 89 47 35 40 ○
9.33 3 9.30 1534SP03C-0933 10 89 47 35 40 ○
C 64 ● ex Stock · ab Lager ○ on demand · auf Anfrage
