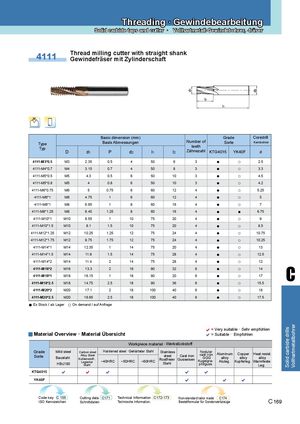

4111 Thread milling cutter with straight shank
Gewindefräser mit Zylinderschaft
| Type | Basic dime Basis Abm | nsion (mm) essungen | Number of | Gra Sor | de te | Coredrill Kernbohrer | ||||
| Typ | teeth | |||||||||
| D | d1 | P | d2 | l1 | l2 | Zähnezahl | KTG4015 | YK40F | d | |
| 4111-M30.5 | M3 | 2.35 | 0.5 | 4 | 50 | 6 | 3 | ● | ○ | 2.5 |
| 4111-M40.7 | M4 | 3.15 | 0.7 | 4 | 50 | 8 | 3 | ● | ○ | 3.3 |
| 4111-M50.5 | M5 | 4.3 | 0.5 | 6 | 50 | 10 | 3 | ● | ○ | 4.5 |
| 4111-M50.8 | M5 | 4 | 0.8 | 6 | 50 | 10 | 3 | ● | ○ | 4.2 |
| 4111-M60.75 | M6 | 5 | 0.75 | 6 | 60 | 12 | 4 | ● | ○ | 5.25 |
| 4111-M61 | M6 | 4.75 | 1 | 6 | 60 | 12 | 4 | ● | ○ | 5 |
| 4111-M81 | M8 | 6.65 | 1 | 8 | 60 | 16 | 4 | ● | ○ | 7 |
| 4111-M81.25 | M8 | 6.45 | 1.25 | 8 | 60 | 16 | 4 | ● | ● | 6.75 |
| 4111-M101 | M10 | 8.55 | 1 | 10 | 75 | 20 | 4 | ● | ○ | 9 |
| 4111-M101.5 | M10 | 8.1 | 1.5 | 10 | 75 | 20 | 4 | ● | ○ | 8.5 |
| 4111-M121.25 | M12 | 10.25 | 1.25 | 12 | 75 | 24 | 4 | ● | ○ | 10.75 |
| 4111-M121.75 | M12 | 9.75 | 1.75 | 12 | 75 | 24 | 4 | ● | ○ | 10.25 |
| 4111-M141 | M14 | 12.35 | 1 | 14 | 75 | 20 | 4 | ● | ○ | 13 |
| 4111-M141.5 | M14 | 11.9 | 1.5 | 14 | 75 | 28 | 4 | ● | ○ | 12.5 |
| 4111-M142 | M14 | 11.4 | 2 | 14 | 75 | 28 | 4 | ● | ○ | 12 |
| 4111-M162 | M16 | 13.3 | 2 | 16 | 90 | 32 | 6 | ● | ○ | 14 |
| 4111-M181 | M18 | 16.15 | 1 | 18 | 90 | 20 | 6 | ● | ○ | 17 |
| 4111-M182.5 | M18 | 14.75 | 2.5 | 18 | 90 | 36 | 6 | ● | ○ | 15.5 |
| 4111-M202 | M20 | 17.1 | 2 | 18 | 100 | 40 | 6 | ● | ○ | 18 |
| 4111-M202.5 | M20 | 16.65 | 2.5 | 18 | 100 | 40 | 6 | ● | ○ | 17.5 |
- Ex Stock / ab Lager auf Anfrage ○ On demand /
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Work | piece mate | rial ∙ Werks | tückstoff | ||||||||
| Grade Sorte | Mild steel HB≤180 Baustahl | Carbon steel Alloy Steel Kohlenstoff-, Legierter Stahl | Hardene ~40HRC | d steel · ~50HRC Gehär | ~60HRC teter Stahl | Stainless steel Rostfreier Stahl | Cast iron Gusseisen | Nodular cast iron GGG Kugelgra- phitguss | Aluminum alloy Aluleg. | Copper alloy Kupferleg. | Heat resist. alloy Warmfeste Leg. |
| KTG4015 | | | | | | ||||||
| YK40F | | | | ||||||||
| Code key ISO Kenn | C 155 zeichen | Cutting data Schnittdaten | C171 | Technical Inf Technische Inf | ormation C1 ormation. | 72-173 | Non-standar Bestellformu | d tailor made lar für Sonder | C174 werkzeuge | C |
