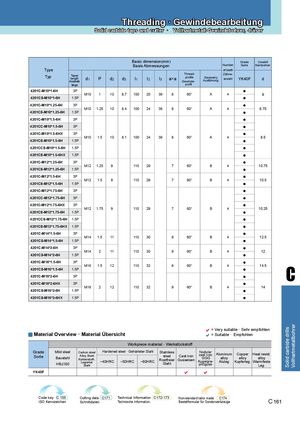

| Type | Taper | Basic Basis | dimen Abme | sion(m ssung | m) en | Thread- i | Number of teeth Zähne- | Grade Sorte | Coredrill Kernbohrer | |||||
| Typ | length Anschnitt- länge | d1 | P | d2 | d3 | l1 | l2 | l3 | a×a | profile Gewinde- profil | Geometry Ausführung | anzahl | YK40F | d |
| 4201C-M101-6H 4201CS-M101-6H | 3P 1.5P | M10 | 1 | 10 | 8.7 | 100 | 20 | 39 | 8 | 60° | A | 4 | ● ● | 9 |
| 4201C-M101.25-6H 4201CS-M101.25-6H | 3P 1.5P | M10 | 1.25 | 10 | 8.4 | 100 | 24 | 39 | 8 | 60° | A | 4 | ● ● | 8.75 |
| 4201C-M101.5-6H | 3P | ● | ||||||||||||
| 4201CC-M101.5-6H | 3P | ● | ||||||||||||
| 4201C-M101.5-6HX 4201CS-M101.5-6H | 3P 1.5P | M10 | 1.5 | 10 | 8.1 | 100 | 24 | 39 | 8 | 60° | A | 4 | ● ● | 8.5 |
| 4201CCS-M101.5-6H | 1.5P | ● | ||||||||||||
| 4201CS-M101.5-6HX | 1.5P | ● | ||||||||||||
| 4201C-M121.25-6H 4201CS-M121.25-6H | 3P 1.5P | M12 | 1.25 | 9 | 110 | 29 | 7 | 60° | B | 4 | ● ● | 10.75 | ||
| 4201C-M121.5-6H 4201CS-M121.5-6H | 3P 1.5P | M12 | 1.5 | 9 | 110 | 29 | 7 | 60° | B | 4 | ● ● | 10.5 | ||
| 4201C-M121.75-6H | 3P | ● | ||||||||||||
| 4201CC-M121.75-6H | 3P | ● | ||||||||||||
| 4201C-M121.75-6HX 4201CS-M121.75-6H | 3P 1.5P | M12 | 1.75 | 9 | 110 | 29 | 7 | 60° | B | 4 | ● ● | 10.25 | ||
| 4201CCS-M121.75-6H | 1.5P | ● | ||||||||||||
| 4201CS-M121.75-6HX | 1.5P | ● | ||||||||||||
| 4201C-M141.5-6H 4201CS-M141.5-6H | 3P 1.5P | M14 | 1.5 | 11 | 110 | 30 | 9 | 60° | B | 4 | ● ● | 12.5 | ||
| 4201C-M142-6H 4201CS-M142-6H | 3P 1.5P | M14 | 2 | 11 | 110 | 30 | 9 | 60° | B | 4 | ● ● | 12 | ||
| 4201C-M161.5-6H 4201CS-M161.5-6H | 3P 1.5P | M16 | 1.5 | 12 | 110 | 32 | 9 | 60° | B | 4 | ● ● | 14.5 | ||
| 4201C-M162-6H | 3P | ● | ||||||||||||
| 4201C-M162-6HX | 3P | M16 | 2 | 12 | 110 | 32 | 9 | 60° | B | 4 | ● | 14 | ||
| 4201CS-M162-6H 4201CS-M162-6HX | 1.5P 1.5P | ● ● |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Work | piece mat | erial ∙ Werk | stückstoff | ||||||||
| Grade Sorte | Mild steel HB≤180 Baustahl | Carbon steel Alloy Steel Kohlenstoff-, Legierter Stahl | Hardene ~40HRC | d steel · ~50HRC Gehär | ~60HRC teter Stahl | Stainless steel Rostfreier Stahl | Cast iron Gusseisen | Nodular cast iron GGG Kugelgra- phitguss | Aluminum alloy Aluleg. | Copper alloy Kupferleg. | Heat resist. alloy Warmfeste Leg. |
| YK40F | | | |||||||||
| Code key ISO Kenn | C 155 zeichen | Cutting data Schnittdaten | C171 | Technical Inf Technische Inf | ormation C ormation. | 172-173 | Non-standar Bestellformu | d tailor made lar für Sonder | C174 werkzeuge | C |
