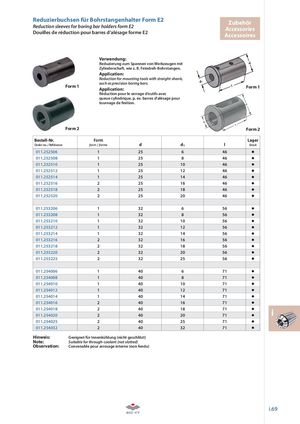

Reduzierbuchsen für Bohrstangenhalter Form E2 Zubehör
Reduction sleeves for boring bar holders form E2 Accessories
Douilles de réduction pour barres d’alésage forme E2 Accessoires
Verwendung: Reduzierung zum Spannen von Werkzeugen mit Zylinderschaft, wie z. B. Feindreh-Bohrstangen.
Application: Reduction for mounting tools with straight-shank, such as precision boring bars. Form 1 Form 1
Application: Réduction pour le serrage d‘outils avec queue cylindrique, p. ex. barres d‘alésage pour tournage de fi nition.
| Form | 2 | Form | |||
| Bestell-Nr. Order no. / Référence | Form form / forme | d | d1 | l | Lager Stock |
| 011.252506 | 1 | 25 | 6 | 46 | |
| 011.252508 | 1 | 25 | 8 | 46 | |
| 011.252510 | 1 | 25 | 10 | 46 | |
| 011.252512 | 1 | 25 | 12 | 46 | |
| 011.252514 | 1 | 25 | 14 | 46 | |
| 011.252516 | 2 | 25 | 16 | 46 | |
| 011.252518 | 2 | 25 | 18 | 46 | |
| 011.252520 | 2 | 25 | 20 | 46 | |
| 011.253206 | 1 | 32 | 6 | 56 | |
| 011.253208 | 1 | 32 | 8 | 56 | |
| 011.253210 | 1 | 32 | 10 | 56 | |
| 011.253212 | 1 | 32 | 12 | 56 | |
| 011.253214 | 1 | 32 | 14 | 56 | |
| 011.253216 | 2 | 32 | 16 | 56 | |
| 011.253218 | 2 | 32 | 18 | 56 | |
| 011.253220 | 2 | 32 | 20 | 56 | |
| 011.253225 | 2 | 32 | 25 | 56 | |
| 011.254006 | 1 | 40 | 6 | 71 | |
| 011.254008 | 1 | 40 | 8 | 71 | |
| 011.254010 | 1 | 40 | 10 | 71 | |
| 011.254012 | 1 | 40 | 12 | 71 | |
| 011.254014 | 1 | 40 | 14 | 71 | |
| 011.254016 | 2 | 40 | 16 | 71 | |
| 011.254018 | 2 | 40 | 18 | 71 | |
| 011.254020 | 2 | 40 | 20 | 71 | |
| 011.254025 | 2 | 40 | 25 | 71 | |
| 011.254032 | 2 | 40 | 32 | 71 |
Hinweis: Geeignet für Innenkühlung (nicht geschlitzt)
Note: Suitable for through-coolant (not slotted)
Observation: Convenable pour arrosage interne (non fendu)
