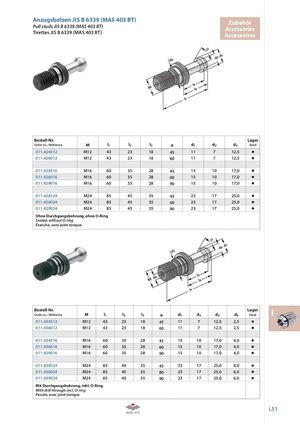

Anzugsbolzen JIS B 6339 (MAS 403 BT) Zubehör
Pull studs JIS B 6339 (MAS 403 BT) Accessories
Tirettes JIS B 6339 (MAS 403 BT) Accessoires
Bestell-Nr. Lager
| Order no. / Référence | M | l | l | l | α | d | d | Stock d | |
| 1 | 2 | 3 | 1 | 2 | 3 | ||||
| 011.424512 | M12 | 43 | 23 | 18 | 45 | 11 | 7 | 12,5 | |
| 011.426012 | M12 | 43 | 23 | 18 | 60 | 11 | 7 | 12,5 | |
| 011.424516 | M16 | 60 | 35 | 28 | 45 | 15 | 10 | 17,0 | |
| 011.426016 | M16 | 60 | 35 | 28 | 60 | 15 | 10 | 17,0 | |
| 011.429016 | M16 | 60 | 35 | 28 | 90 | 15 | 10 | 17,0 | |
| 011.424524 | M24 | 85 | 45 | 35 | 45 | 23 | 17 | 25,0 | |
| 011.426024 | M24 | 85 | 45 | 35 | 60 | 23 | 17 | 25,0 | |
| 011.429024 | M24 | 85 | 45 | 35 | 90 | 23 | 17 | 25,0 |
Ohne Durchgangsbohrung, ohne O-Ring Sealed, without O-ring Étanche, sans joint torique
Bestell-Nr. Lager ii
| Order no. / Référence | M | l | l | l | α | d | d | d | Stock d | |
| 1 | 2 | 3 | 1 | 2 | 3 | 4 | ||||
| 011.434512 | M12 | 43 | 23 | 18 | 45 | 11 | 7 | 12,5 | 2,5 | |
| 011.436012 | M12 | 43 | 23 | 18 | 60 | 11 | 7 | 12,5 | 2,5 | |
| 011.434516 | M16 | 60 | 35 | 28 | 45 | 15 | 10 | 17,0 | 4,0 | |
| 011.436016 | M16 | 60 | 35 | 28 | 60 | 15 | 10 | 17,0 | 4,0 | |
| 011.439016 | M16 | 60 | 35 | 28 | 90 | 15 | 10 | 17,0 | 4,0 | |
| 011.434524 | M24 | 85 | 45 | 35 | 45 | 23 | 17 | 25,0 | 6,0 | |
| 011.436024 | M24 | 85 | 45 | 35 | 80 | 23 | 17 | 25,0 | 6,0 | |
| 011.439024 | M24 | 85 | 45 | 35 | 90 | 23 | 17 | 25,0 | 6,0 |
Mit Durchgangsbohrung, inkl. O-Ring With drill through, incl. O-ring Percée, avec joint torique
