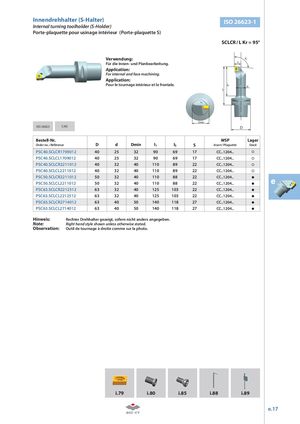

Innendrehhalter (S-Halter) ISO 26623-1
Internal turning toolholder (S-Holder)
Porte-plaquette pour usinage intérieur (Porte-plaquette S)
SCLCR / L Kr = 95°
| Verwend Für die Inn | ung: en- und Plan | bearbeitun | g. | S Kr | |||
| Applicati | on: | ||||||
| ISO 26623 CAD | For interna Applicati Pour le tou | l and face ma on: rnage intérie | chining. ur et le fro | ntale. | Dmin | l l d D | |
| Bestell-Nr. Order no. / Référence | D | d | Dmin | l1 | l3 | S | WSP Insert / Plaquette Lager Stock |
| PSC40.SCLCR1709012 | 40 | 25 | 32 | 90 | 69 | 17 | CC..1204.. |
| PSC40.SCLCL1709012 | 40 | 25 | 32 | 90 | 69 | 17 | CC..1204.. |
| PSC40.SCLCR2211012 | 40 | 32 | 40 | 110 | 89 | 22 | CC..1204.. |
| PSC40.SCLCL2211012 | 40 | 32 | 40 | 110 | 89 | 22 | CC..1204.. |
| PSC50.SCLCR2211012 | 50 | 32 | 40 | 110 | 88 | 22 | CC..1204.. |
| PSC50.SCLCL2211012 | 50 | 32 | 40 | 110 | 88 | 22 | CC..1204.. |
| PSC63.SCLCR2212512 | 63 | 32 | 40 | 125 | 103 | 22 | CC..1204.. |
| PSC63.SCLCL2212512 | 63 | 32 | 40 | 125 | 103 | 22 | CC..1204.. |
| PSC63.SCLCR2714012 | 63 | 40 | 50 | 140 | 118 | 27 | CC..1204.. |
| PSC63.SCLCL2714012 | 63 | 40 | 50 | 140 | 118 | 27 | CC..1204.. |
Hinweis: Rechter Drehhalter gezeigt, sofern nicht anders angegeben.
Note: Right hand style shown unless otherwise stated.
Observation: Outil de tournage à droite comme sur la photo.
