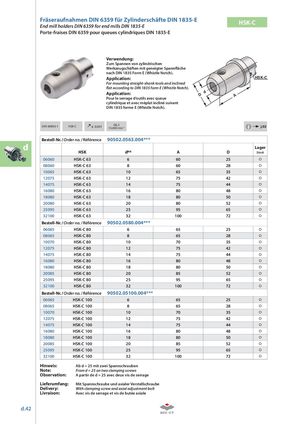

Fräseraufnahmen DIN 6359 für Zylinderschäfte DIN 1835-E HSK-C
Verwendung: Zum Spannen von zylindrischen Werkzeugschäften mit geneigter Spannfl äche nach DIN 1835 Form E (Whistle Notch).
Application: For mounting straight-shank tools and inclined fl at according to DIN 1835 form E (Whistle Notch).
Application: Pour le serrage d’outils avec queue cylindrique et avec méplat incliné suivant DIN 1835 forme E (Whistle Notch).
G6,3 i j.02
DIN 69893-1 HSK-C ≤ 0,003 15.000 min
-1 Bestell-Nr. / Order no. / Référence 90502.0563.004*** dd
| HSK | dH4 | A | D | Lager Stock | |
| 06060 | HSK-C 63 | 6 | 60 | 25 | |
| 08060 | HSK-C 63 | 8 | 60 | 28 | |
| 10065 | HSK-C 63 | 10 | 65 | 35 | |
| 12075 | HSK-C 63 | 12 | 75 | 42 | |
| 14075 | HSK-C 63 | 14 | 75 | 44 | |
| 16080 | HSK-C 63 | 16 | 80 | 48 | |
| 18080 | HSK-C 63 | 18 | 80 | 50 | |
| 20080 | HSK-C 63 | 20 | 80 | 52 | |
| 25095 | HSK-C 63 | 25 | 95 | 65 | |
| 32100 | HSK-C 63 | 32 | 100 | 72 | |
| Bestell-Nr. / | Order no. / Référence | 90502.0580.004 | |||
| 06065 | HSK-C 80 | 6 | 65 | 25 | |
| 08065 | HSK-C 80 | 8 | 65 | 28 | |
| 10070 | HSK-C 80 | 10 | 70 | 35 | |
| 12075 | HSK-C 80 | 12 | 75 | 42 | |
| 14075 | HSK-C 80 | 14 | 75 | 44 | |
| 16080 | HSK-C 80 | 16 | 80 | 48 | |
| 18080 | HSK-C 80 | 18 | 80 | 50 | |
| 20085 | HSK-C 80 | 20 | 85 | 52 | |
| 25095 | HSK-C 80 | 25 | 95 | 65 | |
| 32100 | HSK-C 80 | 32 | 100 | 72 | |
| Bestell-Nr. / | Order no. / Référence | 90502.05100.004 | |||
| 06065 | HSK-C 100 | 6 | 65 | 25 | |
| 08065 | HSK-C 100 | 8 | 65 | 28 | |
| 10070 | HSK-C 100 | 10 | 70 | 35 | |
| 12075 | HSK-C 100 | 12 | 75 | 42 | |
| 14075 | HSK-C 100 | 14 | 75 | 44 | |
| 16080 | HSK-C 100 | 16 | 80 | 48 | |
| 18080 | HSK-C 100 | 18 | 80 | 50 | |
| 20085 | HSK-C 100 | 20 | 85 | 52 | |
| 25095 | HSK-C 100 | 25 | 95 | 65 | |
| 32100 | HSK-C 100 | 32 | 100 | 72 |
| Hinweis: | Ab d = 25 mit zwei Spannschrauben |
| Note: | From d = 25 on two clamping screws |
| Observation: | A partir de d = 25 avec deux vis de serrage |
| Lieferumfang: | Mit Spannschraube und axialer Verstellschraube |
| Delivery: | With clamping screw and axial adjustment bolt |
