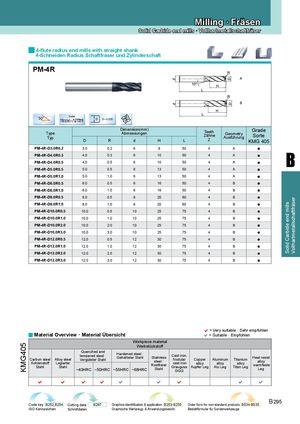

Каталог ZCC-CT фрезы монолитные - страница 55

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

4-flute radius end mills with straight shank
4-Schneiden Radius Schaftfräser und Zylinderschaft
PM-4R
A


B

Coated
30o D 0~-0.020
Nano-AITiN
Dimension(mm) Grade
Type Abmessungen Teeth Geometry
Typ
Zähne Ausführung Sorte
D R d H L Z KMG 405
PM-4R-D3.0R0.2 ●

B
3.0 0.2 6 8 50 4 A
PM-4R-D4.0R0.3 4.0 0.3 6 10 50 4 A ●
PM-4R-D4.0R0.5 4.0 0.5 6 10 50 4 A ●
PM-4R-D5.0R0.5 5.0 0.5 6 13 50 4 A ●
PM-4R-D5.0R1.0 5.0 1.0 6 13 50 4 A ●
PM-4R-D6.0R0.5 6.0 0.5 6 16 50 4 B ●
PM-4R-D6.0R1.0 6.0 1.0 6 16 50 4 B ●
PM-4R-D8.0R0.5 8.0 0.5 8 20 60 4 B ●


Vollhartmetallschaftfräser
PM-4R-D8.0R1.0 8.0 1.0 8 20 60 4 B ●


Solid Carbide end mills
PM-4R-D10.0R0.5 10.0 0.5 10 25 75 4 B ●
PM-4R-D10.0R1.0 10.0 1.0 10 25 75 4 B ●
PM-4R-D10.0R2.0 10.0 2.0 10 25 75 4 B ●
PM-4R-D10.0R3.0 10.0 3.0 10 25 75 4 B ●
PM-4R-D12.0R0.5 12.0 0.5 12 30 75 4 B ●
PM-4R-D12.0R1.0 12.0 1.0 12 30 75 4 B ●
PM-4R-D12.0R2.0 12.0 2.0 12 30 75 4 B ●
PM-4R-D12.0R3.0 12.0 3.0 12 30 75 4 B ●


= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG405


Werkstückstoff
Quenched and
Hardened steel ·
tempered steel · Cast iron,
Gehärteter Stahl Stainless Heat resist
Carbon steel Alloy steel Vergüteter Stahl Nodular Copper Aluminum Titanium
steel · alloy
Kohlenstoff Legierter cast iron alloy alloy alloy
Rostfreier warmfeste
Stahl Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
~40HRC ~50HRC ~55HRC ~68HRC Stahl Leg
GGG

        

Code key B252,B254 Cutting data B297 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 295
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
