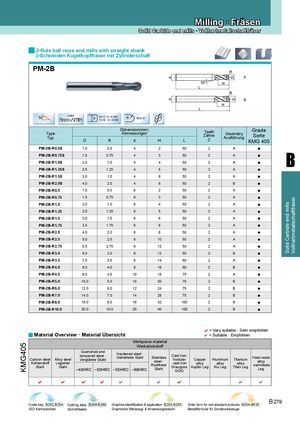

Каталог ZCC-CT фрезы монолитные - страница 39

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

2-flute ball nose end mills with straight shank
2-Schneiden Kugelkopffräser mit Zylinderschaft
PM-2B
A


B

Coated D≤12 0~-0.020
30o D R R±0.01
Nano-AITiN 12<D 0~-0.030

Dimension(mm) Grade
Type Abmessungen Teeth Geometry
Typ
Zähne Ausführung Sorte
D R d H L Z KMG 405
●

B
PM-2B-R0.5S 1.0 0.5 4 2 50 2 A
PM-2B-R0.75S 1.5 0.75 4 3 50 2 A ●
PM-2B-R1.0S 2.0 1.0 4 4 50 2 A ●
PM-2B-R1.25S 2.5 1.25 4 5 50 2 A ●
PM-2B-R1.5S 3.0 1.5 4 6 50 2 A ●
PM-2B-R2.0S 4.0 2.0 4 8 50 2 B ●
PM-2B-R0.5 1.0 0.5 6 2 50 2 A ●
PM-2B-R0.75 1.5 0.75 6 3 50 2 A ●


Vollhartmetallschaftfräser
PM-2B-R1.0 ●


Solid Carbide end mills
2.0 1.0 6 4 50 2 A
PM-2B-R1.25 2.5 1.25 6 5 50 2 A ●
PM-2B-R1.5 3.0 1.5 6 6 50 2 A ●
PM-2B-R1.75 3.5 1.75 6 8 50 2 A ●
PM-2B-R2.0 4.0 2.0 6 8 50 2 A ●
PM-2B-R2.5 5.0 2.5 6 10 50 2 A ●
PM-2B-R2.75 5.5 2.75 6 12 50 2 A ●
PM-2B-R3.0 6.0 3.0 6 12 50 2 B ●
PM-2B-R3.5 7.0 3.5 8 14 60 2 A ●
PM-2B-R4.0 8.0 4.0 8 16 60 2 B ●
PM-2B-R4.5 9.0 4.5 10 18 75 2 A ●
PM-2B-R5.0 10.0 5.0 10 20 75 2 B ●
PM-2B-R6.0 12.0 6.0 12 24 75 2 B ●
PM-2B-R7.0 14.0 7.0 14 28 75 2 B ●
PM-2B-R8.0 16.0 8.0 16 32 100 2 B ●
PM-2B-R10.0 20.0 10.0 20 40 100 2 B ●

= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG405


Werkstückstoff
Quenched and
Hardened steel ·
tempered steel · Cast iron,
Gehärteter Stahl Stainless Heat resist
Carbon steel Alloy steel Vergüteter Stahl Nodular Copper Aluminum Titanium
steel · alloy
Kohlenstoff Legierter cast iron alloy alloy alloy
Rostfreier warmfeste
Stahl Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
~40HRC ~50HRC ~55HRC ~68HRC Stahl Leg
GGG

        

Code key B252,B254 Cutting data B286-B289 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 279
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
