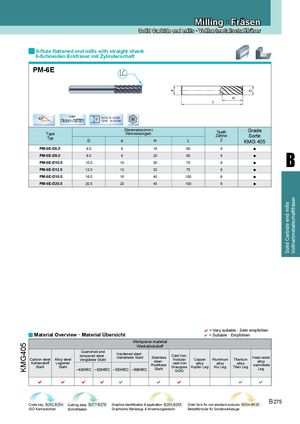

6-flute flattened end mills with straight shank
6- Schneiden Eckfräser mit Zylinderschaft
| PM-6E | d | L H | D | |||
| 45 o Coat Nano- | D≤1 12 D ed AITiN | 2 0~-0.020 D 0~-0.030 | ||||
| Type Typ | D | imension(mm) Abmessungen | Teeth Zähne | Grade Sorte | ||
| D | d | H | L | Z | KMG 405 | |
| PM-6E-D6.0 | 6.0 | 6 | 18 | 60 | 6 | ● |
| PM-6E-D8.0 | 8.0 | 8 | 20 | 60 | 6 | ● |
| PM-6E-D10.0 | 10.0 | 10 | 30 | 75 | 6 | ● |
| PM-6E-D12.0 | 12.0 | 12 | 32 | 75 | 6 | ● |
| PM-6E-D16.0 | 16.0 | 16 | 40 | 100 | 6 | ● |
| PM-6E-D20.0 | 20.0 | 20 | 45 | 100 | 6 | ● |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~55HRC Gehärtet | Workpiec d steel · ~68HRC Werkst er Stahl | e material Stainless steel · ückstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | | | | |
