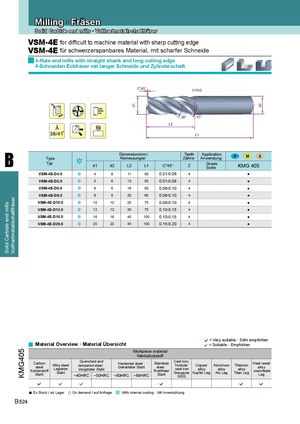

VSM-4E for difficult to machine material with sharp cutting edge
VSM-4E für schwerzerspanbares Material, mit scharfer Schneide
4-flute end mills with straight shank and long cutting edge
4- Schneiden Eckfräser mit langer Schneide und Zylinderschaft
C*45° λ1≠λ2
L2
B
38° 41°
L1
| Type | Dimension Abmessu | (mm) ngen | Teeth Zähne | Application Anwendung | P M S | |||
| Typ | d1 | d2 | L2 | L1 | C45° | Z | Grade Sorte | KMG 405 |
| VSM-4E-D4.0 | 4 | 6 | 11 | 50 | 0.01-0.06 | 4 | ● | |
| VSM-4E-D5.0 | 5 | 6 | 13 | 50 | 0.01-0.06 | 4 | ● | |
| VSM-4E-D6.0 | 6 | 6 | 16 | 50 | 0.06-0.10 | 4 | ● | |
| VSM-4E-D8.0 | 8 | 8 | 20 | 60 | 0.06-0.10 | 4 | ● | |
| VSM-4E-D10.0 | 10 | 10 | 25 | 75 | 0.06-0.10 | 4 | ● | |
| VSM-4E-D12.0 | 12 | 12 | 30 | 75 | 0.10-0.15 | 4 | ● | |
| VSM-4E-D16.0 | 16 | 16 | 45 | 100 | 0.10-0.15 | 4 | ● | |
| VSM-4E-D20.0 | 20 | 20 | 45 | 100 | 0.15-0.20 | 4 | ● |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~60HRC Gehärte | Workpiece d steel · ~68HRC Werkstü ter Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | |
- Ex Stock / ab Lager auf Anfrage ○ On demand / With internal cooling · Mit Innenkühlung
