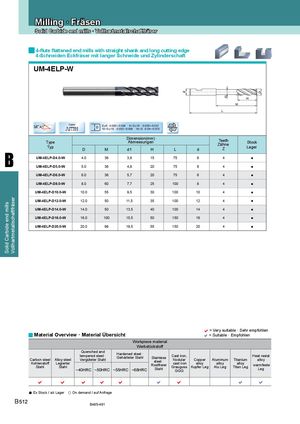

4-flute flattened end mills with straight shank and long cutting edge
4- Schneiden Eckfräser mit langer Schneide und Zylinderschaft
UM-4ELP-W
| 38 o,41 o Coat AIT | ed iN | D≤6 -0.020~ 10 D | -0.038 6 .032~-0.059 18 | -0.025~-0.047 -0.04~-0.073 | ||||
| Type T | Dimensi Abmess | on(mm) ungen | Teeth Zähne | Stock L | ||||
| yp | D | M | d1 | H | L | d | Z | ager |
| UM-4ELP-D4.0-W | 4.0 | 36 | 3,8 | 15 | 75 | 6 | 4 | ● |
| UM-4ELP-D5.0-W | 5.0 | 36 | 4,8 | 20 | 75 | 6 | 4 | ● |
| UM-4ELP-D6.0-W | 6.0 | 36 | 5,7 | 20 | 75 | 6 | 4 | ● |
| UM-4ELP-D8.0-W | 8.0 | 60 | 7,7 | 25 | 100 | 8 | 4 | ● |
| UM-4ELP-D10.0-W | 10.0 | 55 | 9,5 | 30 | 100 | 10 | 4 | ● |
| UM-4ELP-D12.0-W | 12.0 | 50 | 11,5 | 35 | 100 | 12 | 4 | ● |
| UM-4ELP-D14.0-W | 14.0 | 50 | 13,5 | 40 | 100 | 14 | 4 | ● |
| UM-4ELP-D16.0-W | 16.0 | 100 | 15,5 | 50 | 150 | 16 | 4 | ● |
| UM-4ELP-D20.0-W | 20.0 | 98 | 19,5 | 55 | 150 | 20 | 4 | ● |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempered ~40HRC Vergütet | ed and steel · ~50HRC er Stahl | Hardene ~55HRC Gehärtet | Workpiec d steel · ~68HRC Werkst er Stahl | e material Stainless steel · ückstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | | | | |
B485-491
