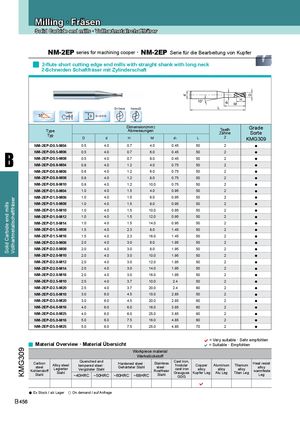

Каталог ZCC-CT фрезы монолитные - страница 216

General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

NM-2EP series for machining cooper · NM-2EP Serie für die Bearbeitung von Kupfer
2-flute short cutting edge end mills with straight shank with long neck
2-Schneiden Schaftfräser mit Zylinderschaft


D
d
H
10°


d1
M
D<1mm 1mm≤D L
Coated
35o
CrN D 0~-0.015

Dimension(mm) Grade
Type Abmessungen Teeth
Typ
Zähne Sorte
Z
D d H M d1 L KMG309
NM-2EP-D0.5-M04 0.5 4.0 0.7 4.0 0.45 50 2 ●

B
NM-2EP-D0.5-M06 0.5 4.0 0.7 6.0 0.45 50 2 ●
NM-2EP-D0.5-M08 0.5 4.0 0.7 8.0 0.45 50 2 ●
NM-2EP-D0.8-M04 0.8 4.0 1.2 4.0 0.75 50 2 ●
NM-2EP-D0.8-M06 0.8 4.0 1.2 6.0 0.75 50 2 ●
NM-2EP-D0.8-M08 0.8 4.0 1.2 8.0 0.75 50 2 ●
NM-2EP-D0.8-M10 0.8 4.0 1.2 10.0 0.75 50 2 ●
NM-2EP-D1.0-M04 1.0 4.0 1.5 4.0 0.95 50 2 ●
NM-2EP-D1.0-M06 1.0 4.0 1.5 6.0 0.95 50 2 ●
Vollhartmetallschaftfräser


NM-2EP-D1.0-M08 1.0 4.0 1.5 8.0 0.95 50 2 ●
Solid Carbide end mills


NM-2EP-D1.0-M10 1.0 4.0 1.5 10.0 0.95 50 2 ●
NM-2EP-D1.0-M12 1.0 4.0 1.5 12.0 0.95 50 2 ●
NM-2EP-D1.0-M14 1.0 4.0 1.5 14.0 0.95 50 2 ●
NM-2EP-D1.5-M08 1.5 4.0 2.3 8.0 1.45 50 2 ●
NM-2EP-D1.5-M16 1.5 4.0 2.3 16.0 1.45 50 2 ●
NM-2EP-D2.0-M06 2.0 4.0 3.0 6.0 1.95 50 2 ●
NM-2EP-D2.0-M08 2.0 4.0 3.0 8.0 1.95 50 2 ●
NM-2EP-D2.0-M10 2.0 4.0 3.0 10.0 1.95 50 2 ●
NM-2EP-D2.0-M12 2.0 4.0 3.0 12.0 1.95 50 2 ●
NM-2EP-D2.0-M14 2.0 4.0 3.0 14.0 1.95 50 2 ●
NM-2EP-D2.0-M16 2.0 4.0 3.0 16.0 1.95 50 2 ●
NM-2EP-D2.5-M10 2.5 4.0 3.7 10.0 2.4 50 2 ●
NM-2EP-D2.5-M20 2.5 4.0 3.7 20.0 2.4 60 2 ●
NM-2EP-D3.0-M10 3.0 6.0 4.5 10.0 2.85 50 2 ●
NM-2EP-D3.0-M20 3.0 6.0 4.5 20.0 2.85 60 2 ●
NM-2EP-D4.0-M16 4.0 6.0 6.0 16.0 3.85 60 2 ●
NM-2EP-D4.0-M25 4.0 6.0 6.0 25.0 3.85 60 2 ●
NM-2EP-D5.0-M16 5.0 6.0 7.5 16.0 4.85 60 2 ●
NM-2EP-D5.0-M25 5.0 6.0 7.5 25.0 4.85 70 2 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
KMG309


Workpiece material
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG

● Ex Stock / ab Lager ○ On demand / auf Anfrage
B 456
