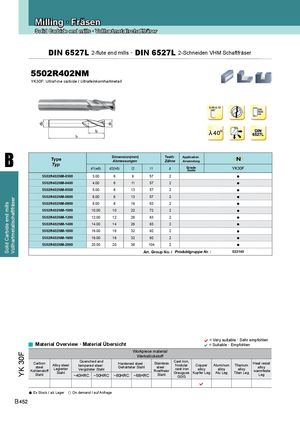

DIN 6527L 2-flute end mills · DIN 6527L 2-Schneiden VHM Schaftfräser
YK30F: Ultraf-ine carbide / Ultrafeinkornhartmetall
B
| Type | Dimens Abmes | ion(mm) sungen | Teeth Zähne | Application Anwendung | N | ||
| Typ | |||||||
| d1(e8) | d2(h6) | l2 | l1 | z | Grade Sorte | YK30F | |
| 5502R402NM-0300 | 3.00 | 6 | 8 | 57 | 2 | ● | |
| 5502R402NM-0400 | 4.00 | 6 | 11 | 57 | 2 | ● | |
| 5502R402NM-0500 | 5.00 | 6 | 13 | 57 | 2 | ● | |
| 5502R402NM-0600 | 6.00 | 6 | 13 | 57 | 2 | ● | |
| 5502R402NM-0800 | 8.00 | 8 | 19 | 63 | 2 | ● | |
| 5502R402NM-1000 | 10.00 | 10 | 22 | 72 | 2 | ● | |
| 5502R402NM-1200 | 12.00 | 12 | 26 | 83 | 2 | ● | |
| 5502R402NM-1400 | 14.00 | 14 | 26 | 83 | 2 | ● | |
| 5502R402NM-1600 | 16.00 | 16 | 32 | 92 | 2 | ● | |
| 5502R402NM-1800 | 18.00 | 18 | 32 | 92 | 2 | ● | |
| 5502R402NM-2000 | 20.00 | 20 | 38 | 104 | 2 | ● | |
| Art. Grou | p No. / Pr | oduktgruppe Nr. : | 022140 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
Werkstückstoff
Carbon Quenched and Stainless Cast iron, Heat resist
| Alloy steel | tempered steel · | Hardened steel · | Nodular | Copper | Aluminum | Titanium | ||||||
| steel | Legierter | Gehärteter Stahl | steel · | cast iron | alloy | alloy | alloy | alloy | ||||
| Kohlenstoff | Vergüteter Stahl | Rostfreier | ||||||||||
| Stahl | Stahl | Stahl | Grauguss | Kupfer Leg | Alu Leg | Titan Leg warmfeste Leg |
~40HRC ~50HRC ~60HRC ~68HRC GGG
