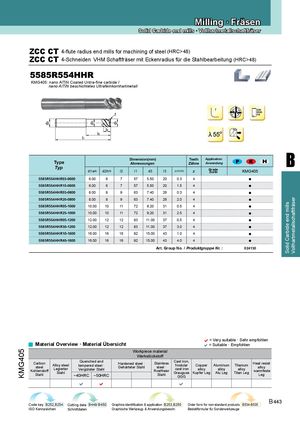

ZCC CT 4-flute radius end mills for machining of steel (HRC>48)
ZCC CT 4- (HRC>48)SchneidenVHM Schaftfräser mit Eckenradius für die Stahlbearbeitung
KMG405: nano AlTiN Coated Untra-fine carbide / nano AITiN beschichtetes Ultrafeinkornhartmetall
B
| Type | Dimens Abmes | ion(mm) sungen | Teeth Zähne | Application Anwendung | H | ||||||
| Typ | d1(e8) | d2(h6) | l2 | l1 | d3 | l3 | r(+0:03) | z | Grade Sorte | KMG405 | |
| 5585R554HHR03-0600 | 6.00 | 6 | 7 | 57 | 5.50 | 20 | 0.3 | 4 | ● | ||
| 5585R554HHR15-0600 | 6.00 | 6 | 7 | 57 | 5.50 | 20 | 1.5 | 4 | ● | ||
| 5585R554HHR03-0800 | 8.00 | 8 | 9 | 63 | 7.40 | 26 | 0.3 | 4 | ● | ||
| 5585R554HHR20-0800 | 8.00 | 8 | 9 | 63 | 7.40 | 26 | 2.0 | 4 | ● | ||
| 5585R554HHR05-1000 | 10.00 | 10 | 11 | 72 | 9.20 | 31 | 0.5 | 4 | ● | ||
| 5585R554HHR25-1000 | 10.00 | 10 | 11 | 72 | 9.20 | 31 | 2.5 | 4 | ● | ||
| 5585R554HHR05-1200 | 12.00 | 12 | 12 | 83 | 11.00 | 37 | 0.5 | 4 | ● | ||
| 5585R554HHR30-1200 | 12.00 | 12 | 12 | 83 | 11.00 | 37 | 3.0 | 4 | ● | ||
| 5585R554HHR10-1600 | 16.00 | 16 | 16 | 92 | 15.00 | 43 | 1.0 | 4 | ● | ||
| 5585R554HHR40-1600 | 16.00 | 16 | 16 | 92 | 15.00 | 43 | 4.0 | 4 | ● | ||
| A | rt. Gro | up No. / | Produktg | ruppe Nr. : | 024130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Workpiec Hardened steel · Werks Gehärteter Stahl | e material Stainless steel · tückstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | |
