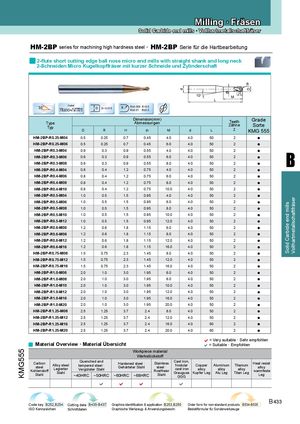

Каталог ZCC-CT фрезы монолитные - страница 193

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

HM-2BP series for machining high hardness steel · HM-2BP Serie für die Hartbearbeitung
2-flute short cutting edge ball nose micro end mills with straight shank and long neck
2-Schneiden Micro Kugelkopffräser mit kurzer Schneide und Zylinderschaft

R


D
d
H
10° M
L
Coated
35 o
R R±0.005 R<0.5
D 0~-0.015
Nano-AITiN R±0.01 R≥0.5

Dimension(mm) Grade
Type Abmessungen Teeth
Typ
Zähne Sorte
Z
D R H d1 M d L KMG 555
HM-2BP-R0.25-M04 0.5 0.25 0.7 0.45 4.0 4.0 50 2 ●
HM-2BP-R0.25-M06 0.5 0.25 0.7 0.45 6.0 4.0 50 2 ●

B
HM-2BP-R0.3-M04 0.6 0.3 0.9 0.55 4.0 4.0 50 2 ●
HM-2BP-R0.3-M06 0.6 0.3 0.9 0.55 6.0 4.0 50 2 ●
HM-2BP-R0.3-M08 0.6 0.3 0.9 0.55 8.0 4.0 50 2 ●
HM-2BP-R0.4-M04 0.8 0.4 1.2 0.75 4.0 4.0 50 2 ●
HM-2BP-R0.4-M06 0.8 0.4 1.2 0.75 6.0 4.0 50 2 ●
HM-2BP-R0.4-M08 0.8 0.4 1.2 0.75 8.0 4.0 50 2 ●
HM-2BP-R0.4-M10 0.8 0.4 1.2 0.75 10.0 4.0 50 2 ●
HM-2BP-R0.5-M04 1.0 0.5 1.5 0.95 4.0 4.0 50 2 ●


Vollhartmetallschaftfräser
HM-2BP-R0.5-M06 1.0 0.5 1.5 0.95 6.0 4.0 50 2 ●


Solid Carbide end mills
HM-2BP-R0.5-M08 1.0 0.5 1.5 0.95 8.0 4.0 50 2 ●
HM-2BP-R0.5-M10 1.0 0.5 1.5 0.95 10.0 4.0 50 2 ●
HM-2BP-R0.5-M12 1.0 0.5 1.5 0.95 12.0 4.0 50 2 ●
HM-2BP-R0.6-M06 1.2 0.6 1.8 1.15 6.0 4.0 50 2 ●
HM-2BP-R0.6-M08 1.2 0.6 1.8 1.15 8.0 4.0 50 2 ●
HM-2BP-R0.6-M12 1.2 0.6 1.8 1.15 12.0 4.0 50 2 ●
HM-2BP-R0.6-M16 1.2 0.6 1.8 1.15 16.0 4.0 50 2 ●
HM-2BP-R0.75-M08 1.5 0.75 2.3 1.45 8.0 4.0 50 2 ●
HM-2BP-R0.75-M12 1.5 0.75 2.3 1.45 12.0 4.0 50 2 ●
HM-2BP-R0.75-M16 1.5 0.75 2.3 1.45 16.0 4.0 50 2 ●
HM-2BP-R1.0-M06 2.0 1.0 3.0 1.95 6.0 4.0 50 2 ●
HM-2BP-R1.0-M08 2.0 1.0 3.0 1.95 8.0 4.0 50 2 ●
HM-2BP-R1.0-M10 2.0 1.0 3.0 1.95 10.0 4.0 50 2 ●
HM-2BP-R1.0-M12 2.0 1.0 3.0 1.95 12.0 4.0 50 2 ●
HM-2BP-R1.0-M16 2.0 1.0 3.0 1.95 16.0 4.0 50 2 ●
HM-2BP-R1.0-M20 2.0 1.0 3.0 1.95 20.0 4.0 50 2 ●
HM-2BP-R1.25-M08 2.5 1.25 3.7 2.4 8.0 4.0 50 2 ●
HM-2BP-R1.25-M12 2.5 1.25 3.7 2.4 12.0 4.0 50 2 ●
HM-2BP-R1.25-M16 2.5 1.25 3.7 2.4 16.0 4.0 60 2 ●
HM-2BP-R1.25-M20 2.5 1.25 3.7 2.4 20.0 4.0 60 2 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG555


Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
   
Code key B252,B254 Cutting data B435-B437 Graphics identification & application B253,B255 Order form for non-standard products B534-B535
B 433
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
