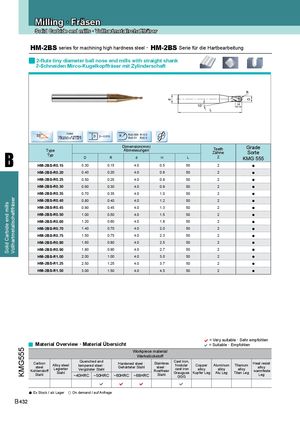

Каталог ZCC-CT фрезы монолитные - страница 192

General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

HM-2BS series for machining high hardness steel · HM-2BS Serie für die Hartbearbeitung
2-flute tiny diameter ball nose end mills with straight shank
2-Schneiden Mirco-Kugelkopffräser mit Zylinderschaft


R


D
d
10° H
L


Coated
35o R R±0.005 R<0.5
D 0~-0.015
Nano-AITiN R±0.01 R≥0.5

Dimension(mm) Grade

B
Type Abmessungen Teeth
Typ
Zähne Sorte
Z
D R d H L KMG 555
HM-2BS-R0.15 0.30 0.15 4.0 0.5 50 2 ●
HM-2BS-R0.20 0.40 0.20 4.0 0.6 50 2 ●
HM-2BS-R0.25 0.50 0.25 4.0 0.8 50 2 ●
HM-2BS-R0.30 0.60 0.30 4.0 0.9 50 2 ●
HM-2BS-R0.35 0.70 0.35 4.0 1.0 50 2 ●
Vollhartmetallschaftfräser


HM-2BS-R0.40 0.80 0.40 4.0 1.2 50 2 ●
Solid Carbide end mills


HM-2BS-R0.45 0.90 0.45 4.0 1.3 50 2 ●
HM-2BS-R0.50 1.00 0.50 4.0 1.5 50 2 ●
HM-2BS-R0.60 1.20 0.60 4.0 1.8 50 2 ●
HM-2BS-R0.70 1.40 0.70 4.0 2.0 50 2 ●
HM-2BS-R0.75 1.50 0.75 4.0 2.3 50 2 ●
HM-2BS-R0.80 1.60 0.80 4.0 2.5 50 2 ●
HM-2BS-R0.90 1.80 0.90 4.0 2.7 50 2 ●
HM-2BS-R1.00 2.00 1.00 4.0 3.0 50 2 ●
HM-2BS-R1.25 2.50 1.25 4.0 3.7 50 2 ●
HM-2BS-R1.50 3.00 1.50 4.0 4.5 50 2 ●


= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
KMG555


Workpiece material
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
   
● Ex Stock / ab Lager ○ On demand / auf Anfrage
B 432
