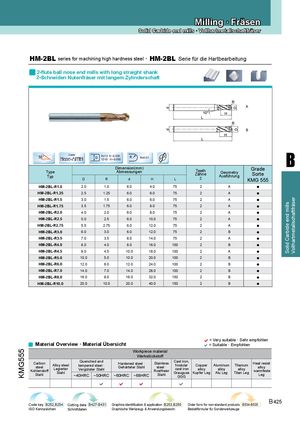

Каталог ZCC-CT фрезы монолитные - страница 185

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser


HM-2BL series for machining high hardness steel · HM-2BL Serie für die Hartbearbeitung
2-flute ball nose end mills with long straight shank
2-Schneiden Nutenfräser mit langem Zylinderschaft


A


B


B
Coated D≤12 0~-0.020
35o D R R±0.01
Nano-AITiN 12<D 0~-0.030

Dimension(mm) Grade
Type Abmessungen Teeth Geometry
Typ
Zähne Ausführung Sorte
Z
D R d H L KMG 555
HM-2BL-R1.0 2.0 1.0 6.0 4.0 75 2 A ●
HM-2BL-R1.25 2.5 1.25 6.0 6.0 75 2 A ●
●


Vollhartmetallschaftfräser
HM-2BL-R1.5 3.0 1.5 6.0 6.0 75 2 A


Solid Carbide end mills
HM-2BL-R1.75 3.5 1.75 6.0 8.0 75 2 A ●
HM-2BL-R2.0 4.0 2.0 6.0 8.0 75 2 A ●
HM-2BL-R2.5 5.0 2.5 6.0 10.0 75 2 A ●
HM-2BL-R2.75 5.5 2.75 6.0 12.0 75 2 A ●
HM-2BL-R3.0 6.0 3.0 6.0 12.0 75 2 B ●
HM-2BL-R3.5 7.0 3.5 8.0 14.0 75 2 A ●
HM-2BL-R4.0 8.0 4.0 8.0 16.0 100 2 B ●
HM-2BL-R4.5 9.0 4.5 10.0 18.0 100 2 A ●
HM-2BL-R5.0 10.0 5.0 10.0 20.0 100 2 B ●
HM-2BL-R6.0 12.0 6.0 12.0 24.0 100 2 B ●
HM-2BL-R7.0 14.0 7.0 14.0 28.0 100 2 B ●
HM-2BL-R8.0 16.0 8.0 16.0 32.0 150 2 B ●
HM-2BL-R10.0 20.0 10.0 20.0 40.0 150 2 B ●


= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG555


Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
   
Code key B252,B254 Cutting data B427-B431 Graphics identification & application B253,B255 Order form for non-standard products B534-B535
