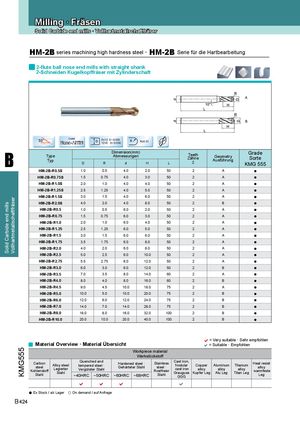

Каталог ZCC-CT фрезы монолитные - страница 184

General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

HM-2B series machining high hardness steel · HM-2B Serie für die Hartbearbeitung
2-flute ball nose end mills with straight shank
2-Schneiden Kugelkopffräser mit Zylinderschaft

A


B

Coated D≤12 0~-0.020
35o D R R±0.01
Nano-AITiN 12<D 0~-0.030


B
Dimension(mm) Grade
Type Abmessungen Teeth Geometry
Typ
Zähne Ausführung Sorte
Z
D R d H L KMG 555
HM-2B-R0.5S 1.0 0.5 4.0 2.0 50 2 A ●
HM-2B-R0.75S 1.5 0.75 4.0 3.0 50 2 A ●
HM-2B-R1.0S 2.0 1.0 4.0 4.0 50 2 A ●
HM-2B-R1.25S 2.5 1.25 4.0 5.0 50 2 A ●
HM-2B-R1.5S 3.0 1.5 4.0 6.0 50 2 A ●
Vollhartmetallschaftfräser


HM-2B-R2.0S 4.0 2.0 4.0 8.0 50 2 B ●
Solid Carbide end mills


HM-2B-R0.5 1.0 0.5 6.0 2.0 50 2 A ●
HM-2B-R0.75 1.5 0.75 6.0 3.0 50 2 A ●
HM-2B-R1.0 2.0 1.0 6.0 4.0 50 2 A ●
HM-2B-R1.25 2.5 1.25 6.0 5.0 50 2 A ●
HM-2B-R1.5 3.0 1.5 6.0 6.0 50 2 A ●
HM-2B-R1.75 3.5 1.75 6.0 8.0 50 2 A ●
HM-2B-R2.0 4.0 2.0 6.0 8.0 50 2 A ●
HM-2B-R2.5 5.0 2.5 6.0 10.0 50 2 A ●
HM-2B-R2.75 5.5 2.75 6.0 12.0 50 2 A ●
HM-2B-R3.0 6.0 3.0 6.0 12.0 50 2 B ●
HM-2B-R3.5 7.0 3.5 8.0 14.0 60 2 A ●
HM-2B-R4.0 8.0 4.0 8.0 16.0 60 2 B ●
HM-2B-R4.5 9.0 4.5 10.0 18.0 75 2 A ●
HM-2B-R5.0 10.0 5.0 10.0 20.0 75 2 B ●
HM-2B-R6.0 12.0 6.0 12.0 24.0 75 2 B ●
HM-2B-R7.0 14.0 7.0 14.0 28.0 75 2 B ●
HM-2B-R8.0 16.0 8.0 16.0 32.0 100 2 B ●
HM-2B-R10.0 20.0 10.0 20.0 40.0 100 2 B ●

= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
KMG555


Workpiece material
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
   
● Ex Stock / ab Lager ○ On demand / auf Anfrage
B 424
