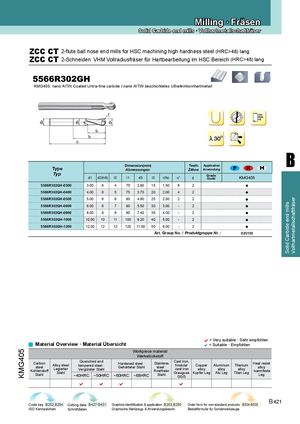

ZCC CT 2-flute ball nose end mills for HSC machining high hardness steel (HRC>48) lang
ZCC CT 2- (HRC>48)SchneidenVHM Vollradiusfräser für Hartbearbeitung im HSC Bereich lang
KMG405: nano AlTiN Coated Untra-fine carbide / nano AITiN beschichtetes Ultrafeinkornhartmetall
B
| Type | Dimen Abme | sion(m ssunge | m) n | Teeth Zähne | Application Anwendung | H | ||||||
| Typ | d1 | d2(h6) | l2 | l1 | d3 | l3 | r(fs) | α° | z | Grade Sorte | KMG405 | |
| 5566R302GH-0300 | 3.00 | 6 | 4 | 75 | 2.80 | 15 | 1.50 | 6 | 2 | ● | ||
| 5566R302GH-0400 | 4.00 | 6 | 5 | 75 | 3.70 | 20 | 2.00 | 4 | 2 | ● | ||
| 5566R302GH-0500 | 5.00 | 6 | 6 | 80 | 4.60 | 25 | 2.50 | 2 | 2 | ● | ||
| 5566R302GH-0600 | 6.00 | 6 | 7 | 80 | 5.50 | 30 | 3.00 | - | 2 | ● | ||
| 5566R302GH-0800 | 8.00 | 8 | 9 | 90 | 7.40 | 35 | 4.00 | - | 2 | ● | ||
| 5566R302GH-1000 | 10.00 | 10 | 11 | 100 | 9.20 | 40 | 5.00 | - | 2 | ● | ||
| 5566R302GH-1200 | 12.00 | 12 | 12 | 120 | 11.00 | 50 | 6.00 | - | 2 | ● | ||
| Ar | t. Group | No. / | Produktg | ruppe Nr. : | 025130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~60HRC Gehärte | Workpiece d steel · ~68HRC Werkstü ter Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | |
