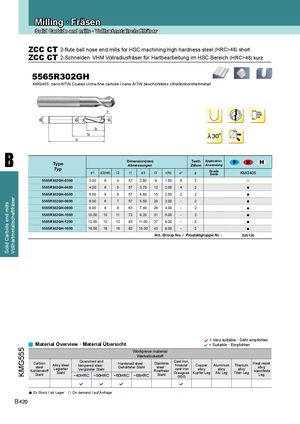

ZCC CT 2-flute ball nose end mills for HSC machining high hardness steel (HRC>48) short
ZCC CT 2- (HRC>48) SchneidenVHM Vollradiusfräser für Hartbearbeitung im HSC Bereich kurz
KMG405: nano AlTiN Coated Untra-fine carbide / nano AITiN beschichtetes Ultrafeinkornhartmetall
B
| Type | Dime Abm | nsion(m essunge | m) n | Teeth Zähne | Application Anwendung | H | ||||||
| Typ | d1 | d2(h6) | l2 | l1 | d3 | l3 | r(f8) | α° | z | Grade Sorte | KMG405 | |
| 5565R302GH-0300 | 3.00 | 6 | 4 | 57 | 2.80 | 9 | 1.50 | 6 | 2 | ○ | ||
| 5565R302GH-0400 | 4.00 | 6 | 5 | 57 | 3.70 | 12 | 2.00 | 4 | 2 | ● | ||
| 5565R302GH-0500 | 5.00 | 6 | 6 | 57 | 4.60 | 15 | 2.50 | 2 | 2 | ● | ||
| 5565R302GH-0600 | 6.00 | 6 | 7 | 57 | 5.50 | 20 | 3.00 | - | 2 | ● | ||
| 5565R302GH-0800 | 8.00 | 8 | 9 | 63 | 7.40 | 26 | 4.00 | - | 2 | ● | ||
| 5565R302GH-1000 | 10.00 | 10 | 11 | 72 | 9.20 | 31 | 5.00 | - | 2 | ● | ||
| 5565R302GH-1200 | 12.00 | 12 | 12 | 83 | 11.00 | 37 | 6.00 | - | 2 | ● | ||
| 5565R302GH-1600 | 16.00 | 16 | 16 | 92 | 15.00 | 43 | 8.00 | - | 2 | ● | ||
| Art. | Group | No. / | Produktg | ruppe Nr. : | 025130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~60HRC Gehärte | Workpiece d steel · ~68HRC Werkstü ter Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | |
